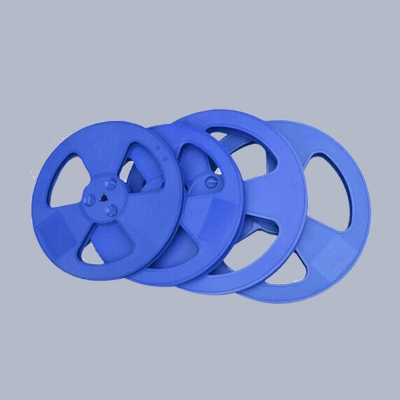

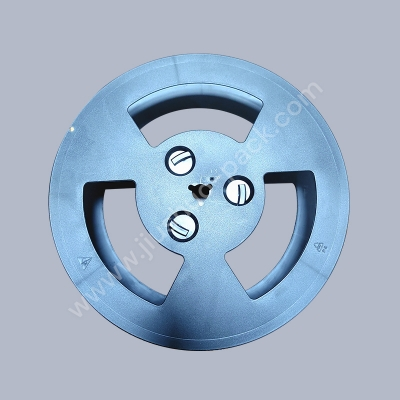

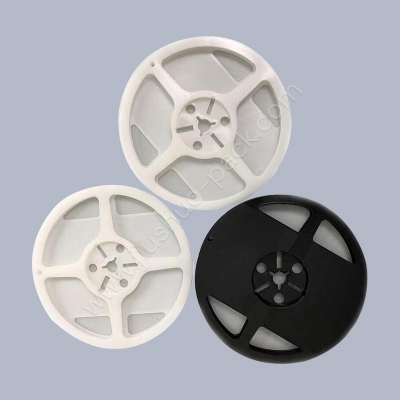

SMT Plastic Reel

Plastic reels are typically manufactured from durable plastic materials such as PS (Polystyrene) or ABS.These materials provide good mechanical strength, dimensional stability, and durability required for handling carrier tape packaging during storage, transportation, and automated SMT feeding.

Material selection may vary depending on reel size, application requirements, and manufacturing conditions.

Plastic reels are designed to securely hold carrier tape while allowing smooth rotation during automated feeding.

A standard reel structure typically includes:

• Hub – the central structure that supports the tape winding
• Flanges – side plates that keep the tape aligned and prevent lateral movement
• locking features – structures that help secure the tape during storage and transportation

This design helps maintain organized tape winding and ensures stable feeding performance in SMT pick-and-place machines.

SMT plastic reels are widely used in tape and reel packaging for surface-mount electronic components.

Typical applications include packaging of:

• Integrated circuits (ICs)
• LEDs
• Connectors
• Sensors
• Resistors and capacitors
• Other SMT electronic components

These reels are commonly used in electronics manufacturing environments where automated SMT assembly equipment is used.

• These plastic reels are compatible with automatic SMT feeder systems used in pick-and-place equipment.
• Their standard dimensions and structure allow direct loading into SMT feeders, ensuring stable component supply during high-speed production.
• Most are designed in accordance with EIA-481 standards, making them fully compatible with industry-standard tape and reel packaging systems.

Plastic reel production requires stable injection molding processes and strict dimensional control to ensure consistent reel performance.

Quality control procedures typically include:

• Raw material inspection
• Mold precision verification
• Dimensional inspection
• Finished product inspection
