Anti-Static Carrier Tape

Anti-static carrier tape is typically manufactured from thermoplastic materials such as PS (Polystyrene), PC (Polycarbonate), PET, or ABS combined with anti-static additives.

These materials provide reliable pocket forming performance, stable dimensional control, and controlled electrical properties required for electrostatic protection.

Material selection may vary depending on the component type, packaging requirements, and SMT production conditions.

Electronic components such as integrated circuits and semiconductor devices can be highly sensitive to electrostatic discharge.

Anti-static carrier tape helps reduce static accumulation by maintaining controlled surface resistance across the material.

This controlled resistance allows electrical charges to dissipate gradually rather than building up on the surface of the tape.

This helps protect sensitive components during:

• packaging processes
• storage and transportation
• automated SMT assembly

Typical surface resistance values range from 10⁶ to 10¹¹ Ω depending on the application requirements.

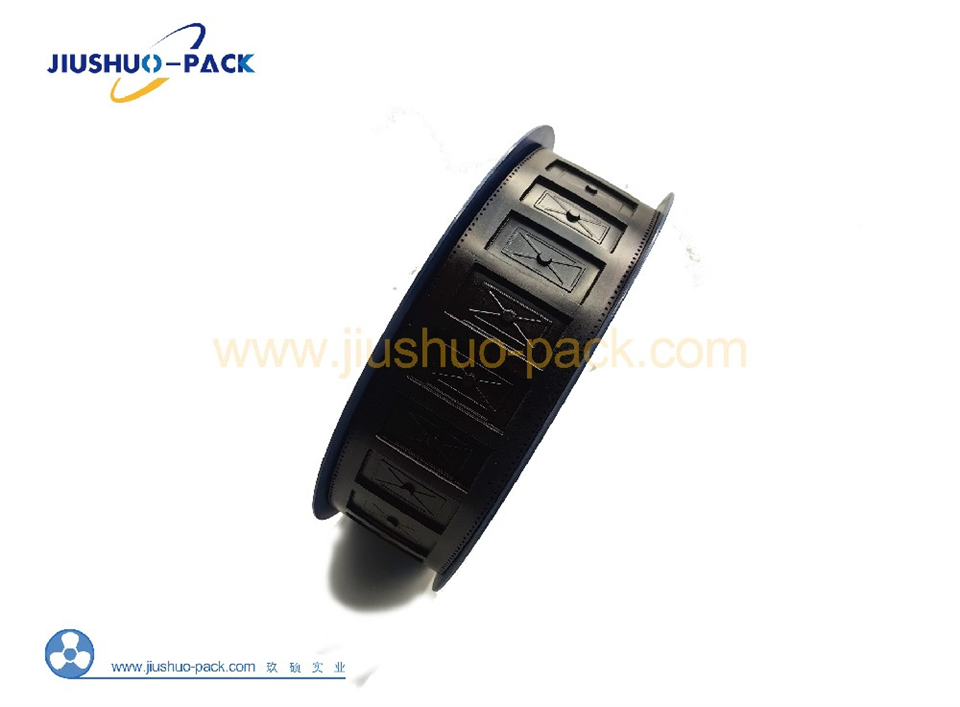

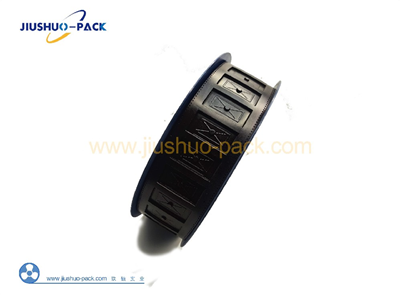

• Anti-static carrier tape contains precisely formed pockets designed according to the size and geometry of electronic components.
• These pockets help keep components securely positioned during handling and automated feeding.
• Standardized sprocket holes along the tape edges allow accurate indexing when the tape moves through SMT pick-and-place machines.
• This ensures stable feeding performance during automated SMT production.

Anti-static carrier tape is widely used for packaging electronic components that require electrostatic protection.

Typical applications include:

• integrated circuits (ICs)
• semiconductor devices
• sensors
• connectors
• LEDs
• other SMT electronic components

The tape and reel packaging format allows these components to be efficiently handled and automatically fed into SMT pick-and-place machines during PCB assembly.

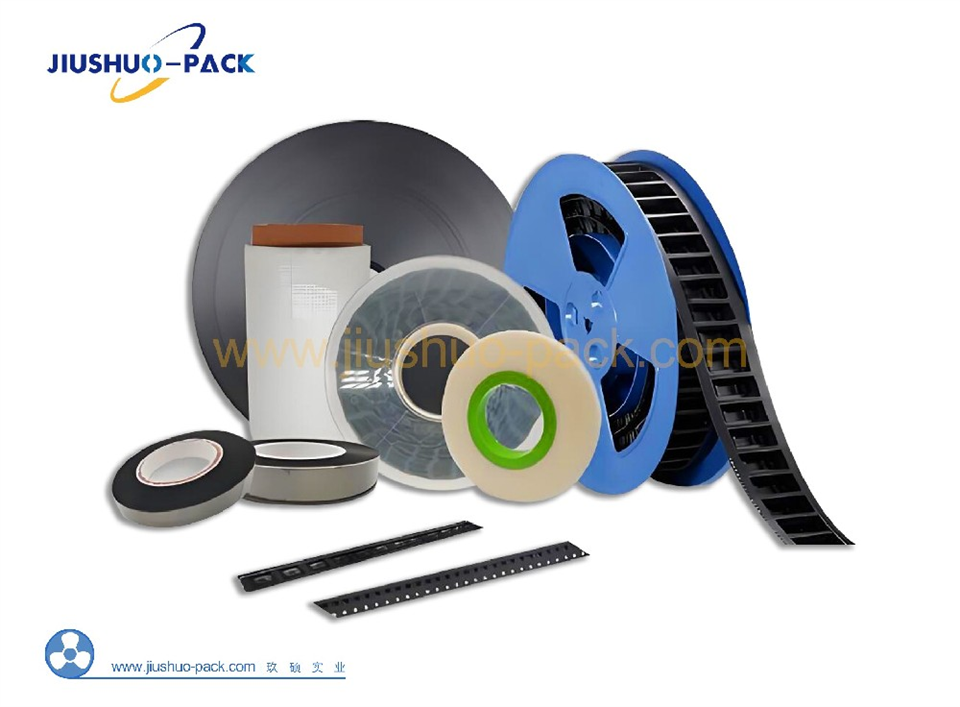

• Anti-static carrier tape is commonly used in tape and reel packaging systems.
• In this packaging method, electronic components are placed into the pockets of the carrier tape and sealed with cover tape.

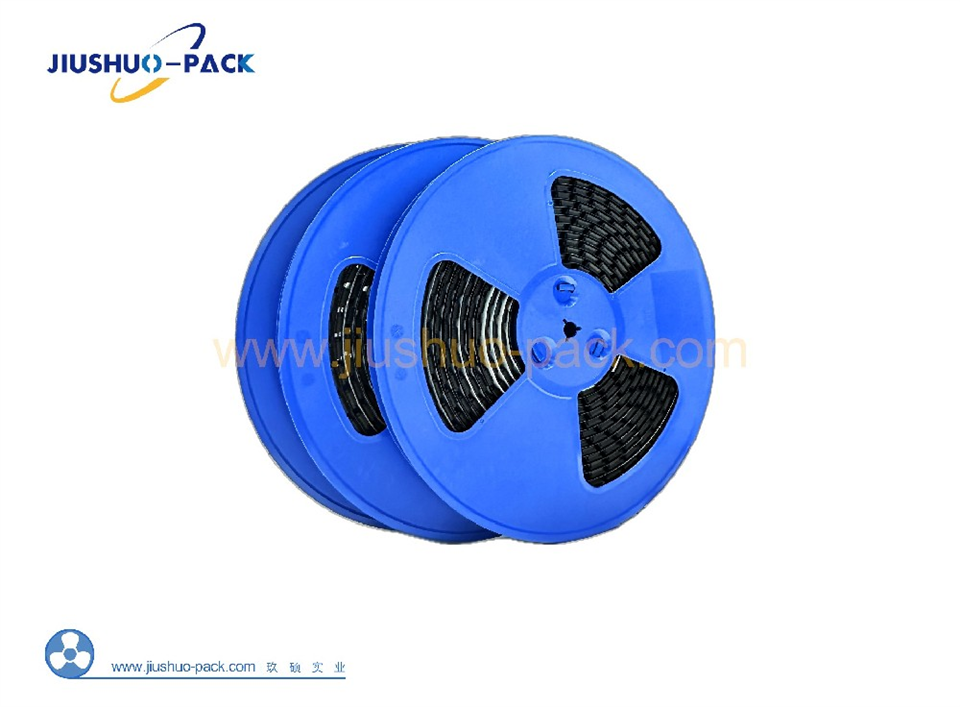

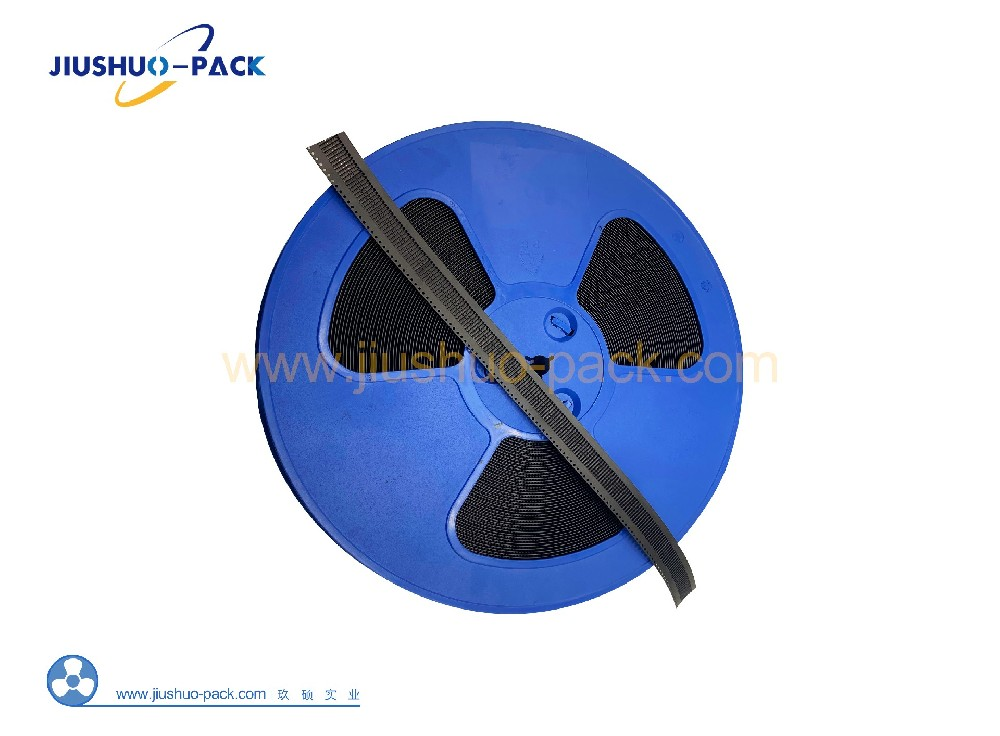

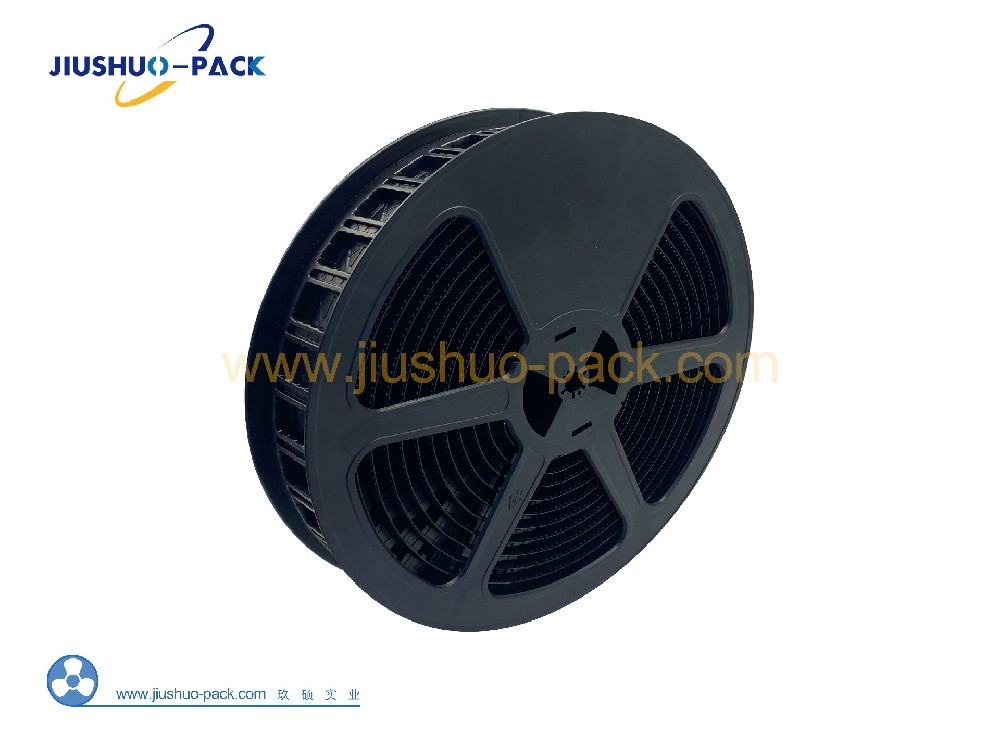

• The sealed tape is then wound onto plastic reels, creating a continuous packaging format suitable for automated SMT feeding systems.
• This structure helps maintain component orientation and protects components during transportation.

Carrier tape production requires stable forming processes and strict dimensional control to ensure reliable packaging performance.

Quality control procedures typically include:

• raw material inspection
• pocket dimension verification
• forming process monitoring
• ESD resistance testing
• finished product inspection

Most carrier tape products comply with RoHS environmental requirements and follow EIA-481 and EIA-541 standards, ensuring compatibility with automated SMT packaging systems.
