Chip Carrier Tape

Chip carrier tape is typically manufactured from thermoplastic materials such as PS (Polystyrene), PC (Polycarbonate), PET, or ABS. These materials provide reliable forming performance and dimensional stability, which are important for packaging small chip components.

Different materials may be selected depending on component sensitivity, mechanical strength requirements, and forming performance.

For semiconductor or sensitive electronic devices, carrier tape materials can also include antistatic or conductive properties to help reduce electrostatic discharge during packaging and transportation.

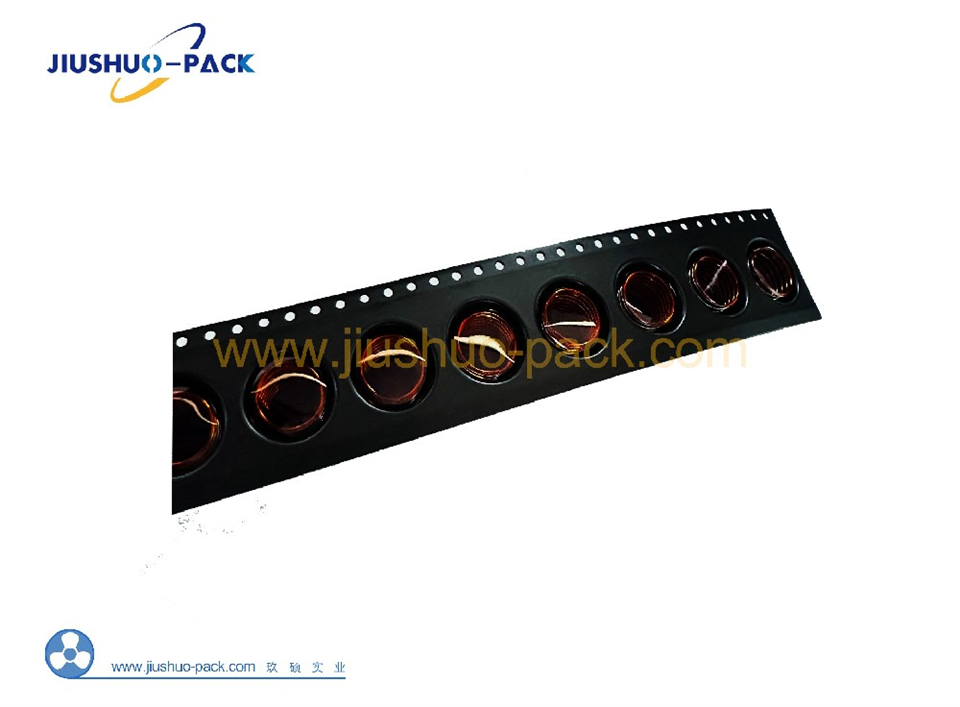

Chip carrier tape contains precisely formed pockets designed according to the dimensions of chip components. These cavities help keep components securely positioned during handling and automated feeding.

Standardized sprocket holes along the tape edges allow accurate indexing when the tape moves through SMT pick-and-place machines.

This structure ensures stable component feeding and helps prevent component rotation or displacement during high-speed SMT production.

Different chip components require different pocket dimensions and tape configurations.

Carrier tape pockets can be customized based on:

• chip size and thickness
• component orientation requirements
• packaging density
• SMT feeding compatibility

Custom mold development allows carrier tape pockets to match the exact dimensions of chip components, ensuring reliable packaging performance during automated assembly.

Chip carrier tape is widely used for packaging integrated circuits and various semiconductor devices used in modern electronic products.

Typical applications include:

• IC chips
• microchips
• semiconductor sensors
• small integrated electronic modules
• miniature semiconductor components

The tape and reel packaging format allows these components to be automatically fed into SMT pick-and-place machines during PCB assembly, improving production efficiency.

During the tape and reel packaging process, chip components are placed into the pockets of carrier tape and sealed with cover tape.

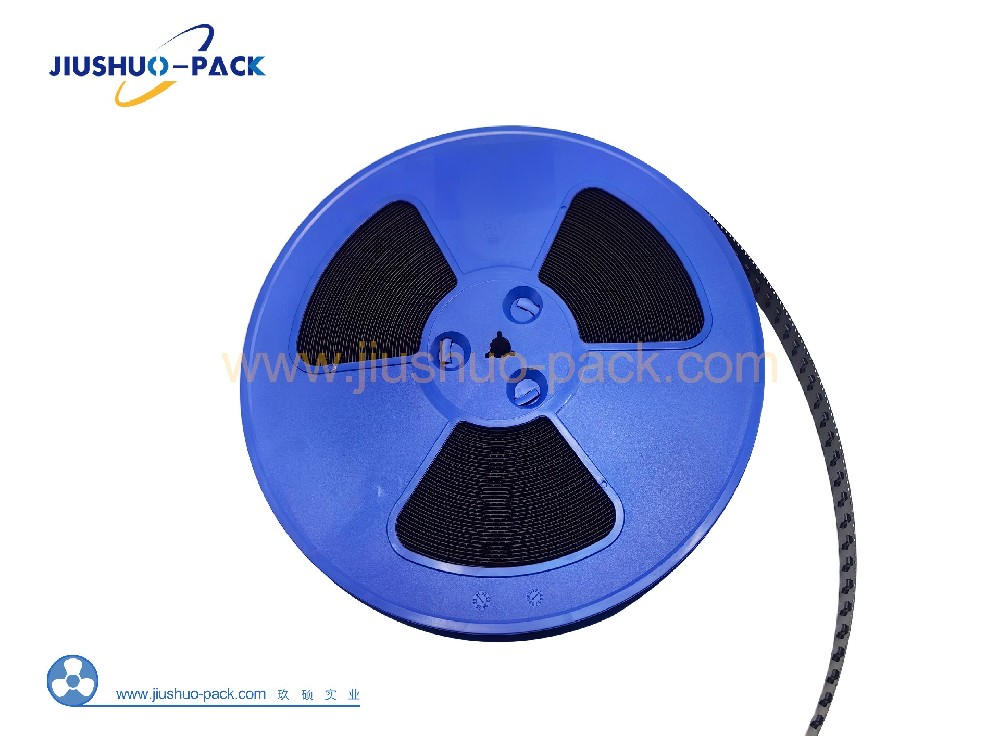

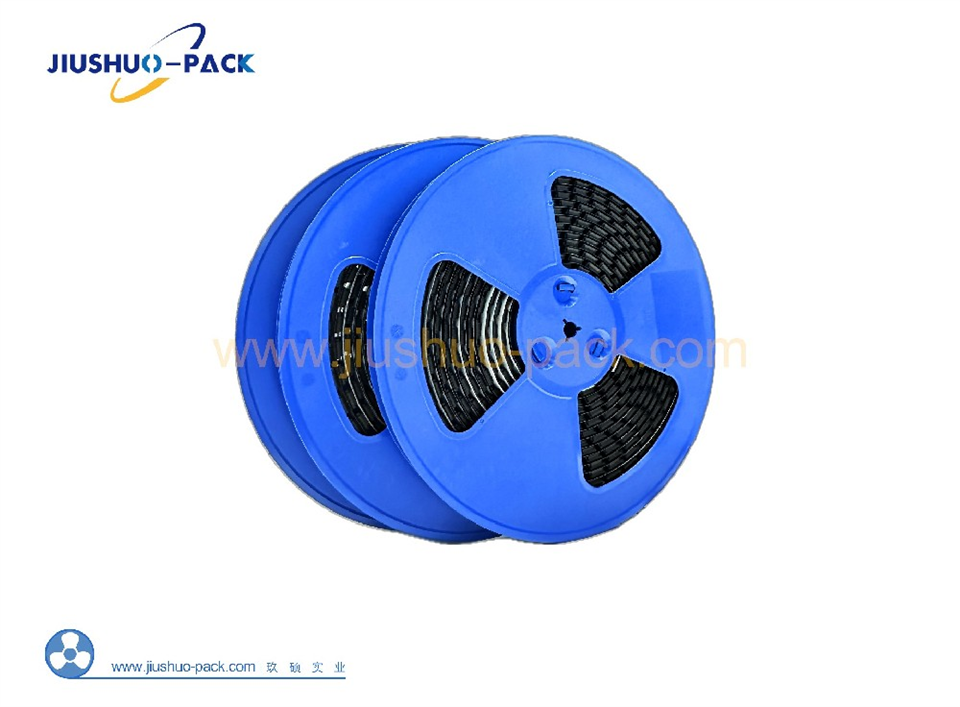

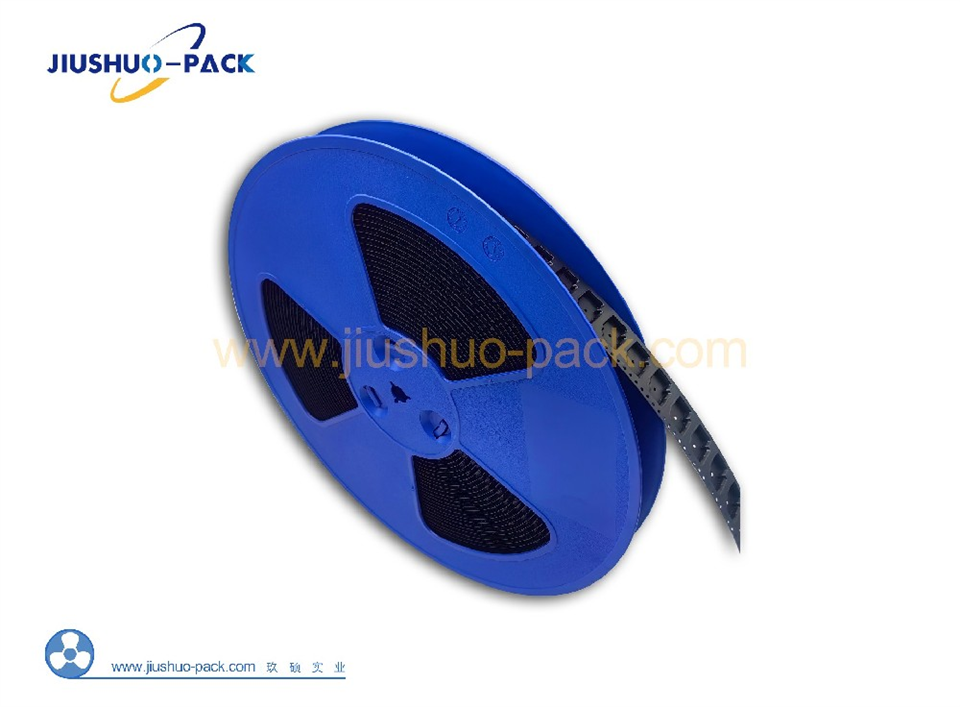

The sealed tape is then wound onto plastic reels, forming a continuous packaging format suitable for automated manufacturing.

This packaging structure helps protect chip components from:

• contamination
• vibration
• mechanical damage
• misalignment during transportation

The tape and reel format is widely used because it supports efficient handling, automated feeding, and high-volume electronics production.

Carrier tape used for chip packaging is typically manufactured under strict quality control processes to ensure consistent pocket dimensions and reliable tape structure.

Quality control procedures may include:

• raw material inspection
• pocket dimension verification
• forming process monitoring
• finished product inspection

Most carrier tape products comply with RoHS environmental requirements and follow the EIA-481 standard, which defines specifications for carrier tape used in tape-and-reel packaging systems.

These standards help ensure compatibility with automated SMT assembly equipment.

Carrier tape packaging solutions are designed to support reliable chip packaging in electronics manufacturing.

Stable carrier tape production focuses on:

• consistent pocket forming quality
• reliable dimensional accuracy
• compatibility with SMT feeding systems

These factors help maintain stable production performance in high-speed electronics assembly lines.
