Carrier Tape Packaging

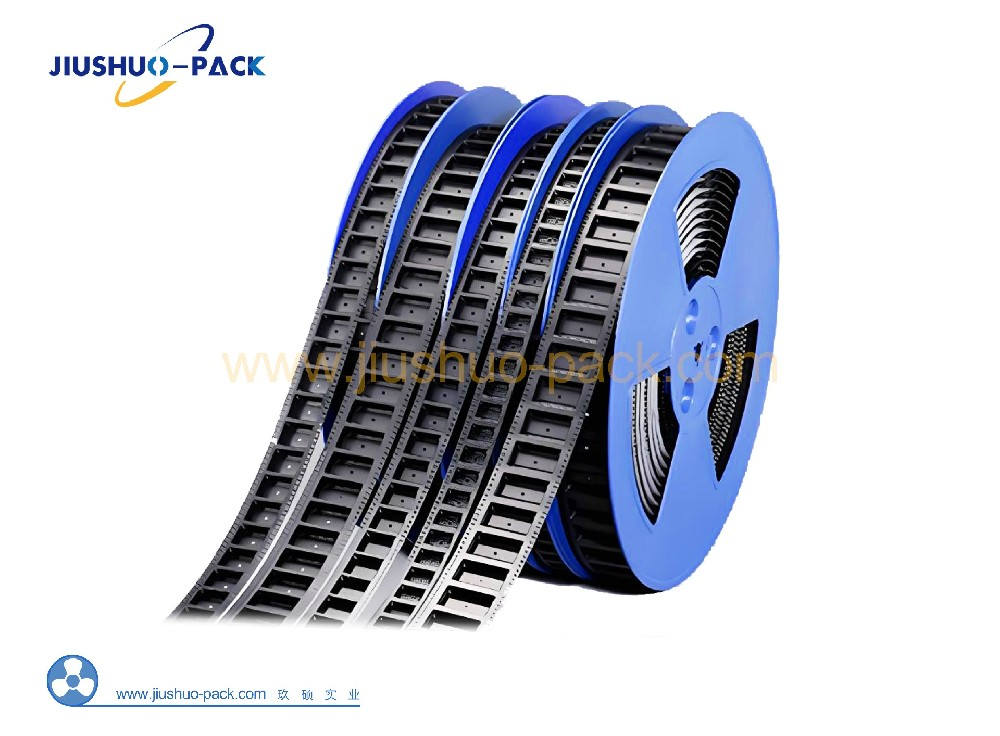

Carrier tape packaging uses specially designed carrier tape with formed pockets that match the size and shape of electronic components.

During the packaging process:

• electronic components are placed into the carrier tape pockets
• cover tape is applied to seal the pockets

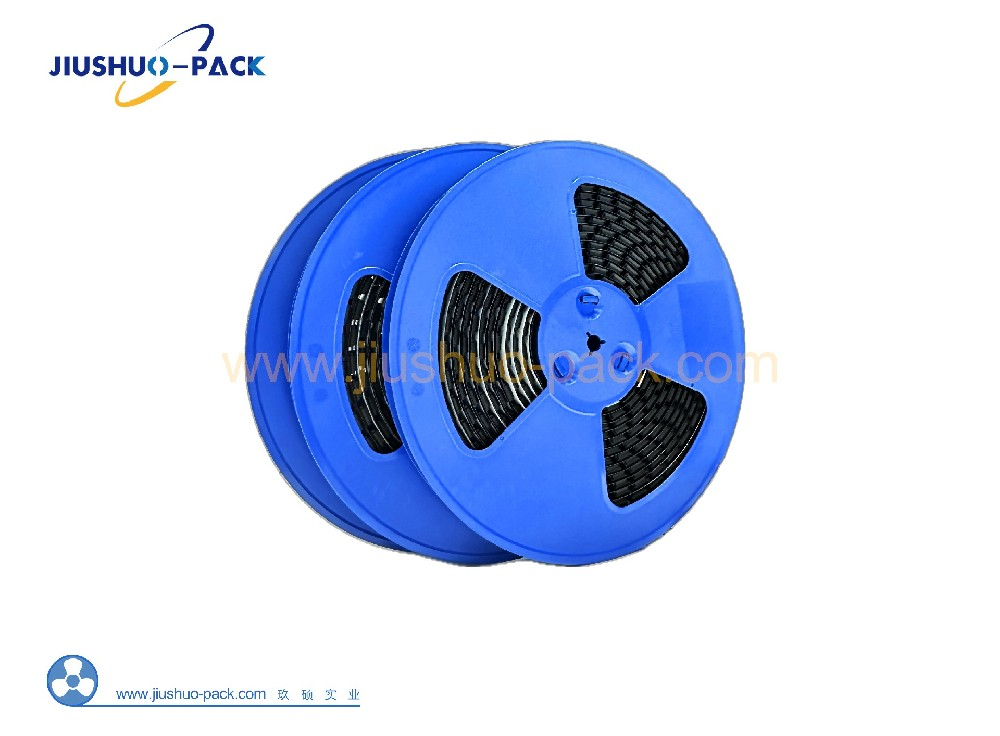

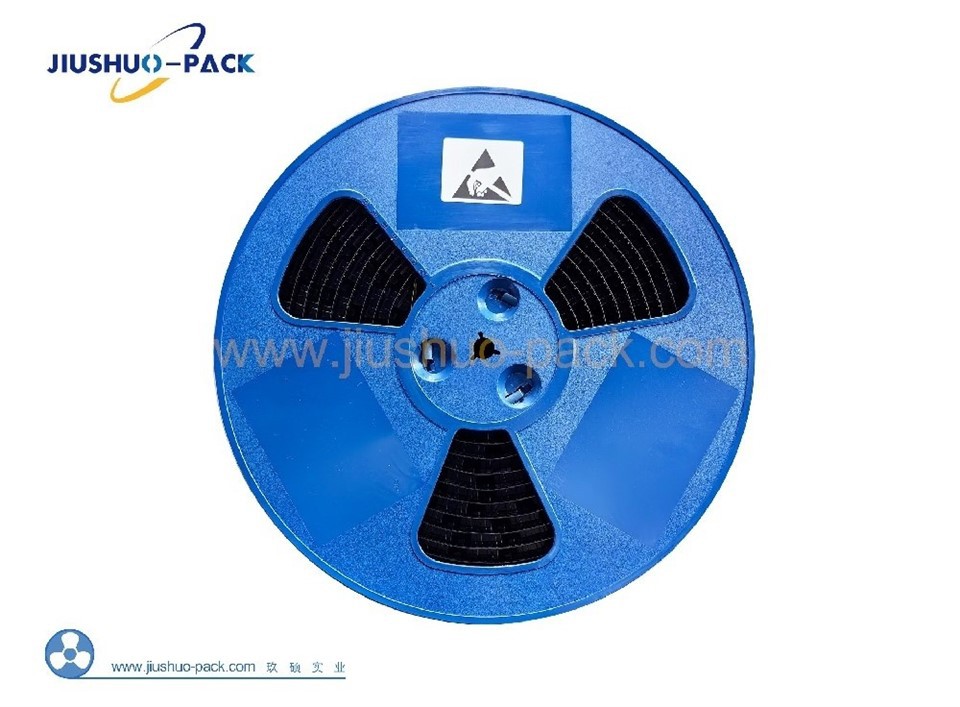

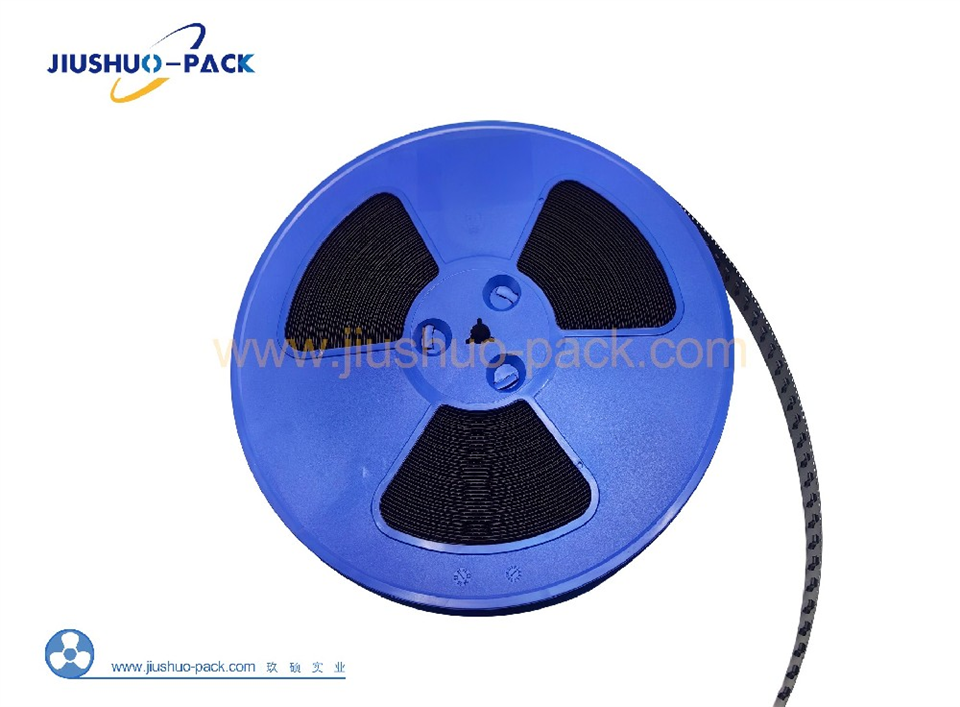

• the sealed tape is wound onto plastic reels

This packaging structure helps maintain component orientation and prevents movement during transportation and automated assembly.

The tape and reel system is an industry-standard packaging format used in SMT production.

Once the carrier tape is sealed with cover tape and wound onto reels, the packaged components can be loaded directly into SMT feeders used in automated pick-and-place machines.

This continuous packaging format enables:

• automated component feeding
• efficient storage and logistics
• high-speed SMT assembly

• Carrier tape used in packaging systems is typically manufactured from thermoplastic materials such as PS (Polystyrene), PC (Polycarbonate), PET, or ABS.
• These materials provide stable pocket forming performance, dimensional stability, and sufficient mechanical strength for electronic component packaging.
• Material selection may vary depending on component size, pocket geometry, and packaging requirements.

Carrier tape packaging is widely used in electronics manufacturing for packaging various surface-mount components.

Typical applications include:

• integrated circuits (ICs)
• LEDs
• connectors
• sensors
• resistors and capacitors
• other SMT electronic components

This packaging format enables components to be efficiently transported, stored, and automatically fed into SMT pick-and-place machines during PCB assembly.

Carrier tape packaging provides an organized and protective format for electronic components during storage and transportation.

The tape and reel system helps:

• protect components from damage
• maintain component orientation
• support automated SMT feeding

Because the components remain sealed inside the carrier tape pockets, the packaging structure reduces the risk of component loss or misalignment during logistics and manufacturing processes.

Carrier tape packaging materials require stable manufacturing processes and strict dimensional control to ensure reliable packaging performance.

Quality control procedures typically include:

• raw material inspection
• pocket dimension verification
• cover tape peel strength testing
• forming process monitoring
• finished product inspection

Most carrier tape packaging systems comply with RoHS environmental requirements and follow EIA-481 standards, ensuring compatibility with automated SMT assembly equipment.
