ESD Carrier Tape

ESD carrier tape is typically manufactured from thermoplastic materials such as PS (Polystyrene), PC (Polycarbonate), PET, or ABS with antistatic additives.

These materials help control surface resistance and reduce electrostatic discharge while maintaining stable pocket formation and structural strength.

Material selection may vary depending on the component sensitivity and packaging requirements.

Electronic components such as integrated circuits and semiconductor devices can be highly sensitive to electrostatic discharge.

ESD carrier tape helps reduce static buildup by maintaining controlled surface resistance across the material.

This allows electrical charges to dissipate gradually, helping prevent electrostatic damage during:

• component packaging
• storage and transportation
• automated SMT assembly

Typical surface resistance values range from 10⁶ to 10¹¹ Ω depending on the application requirements.

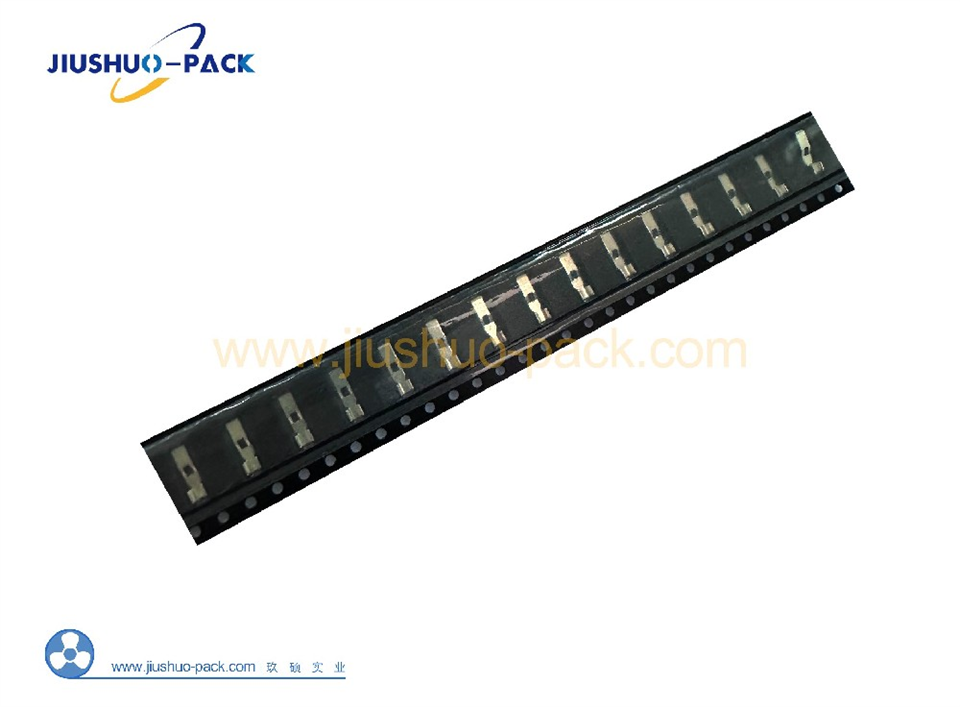

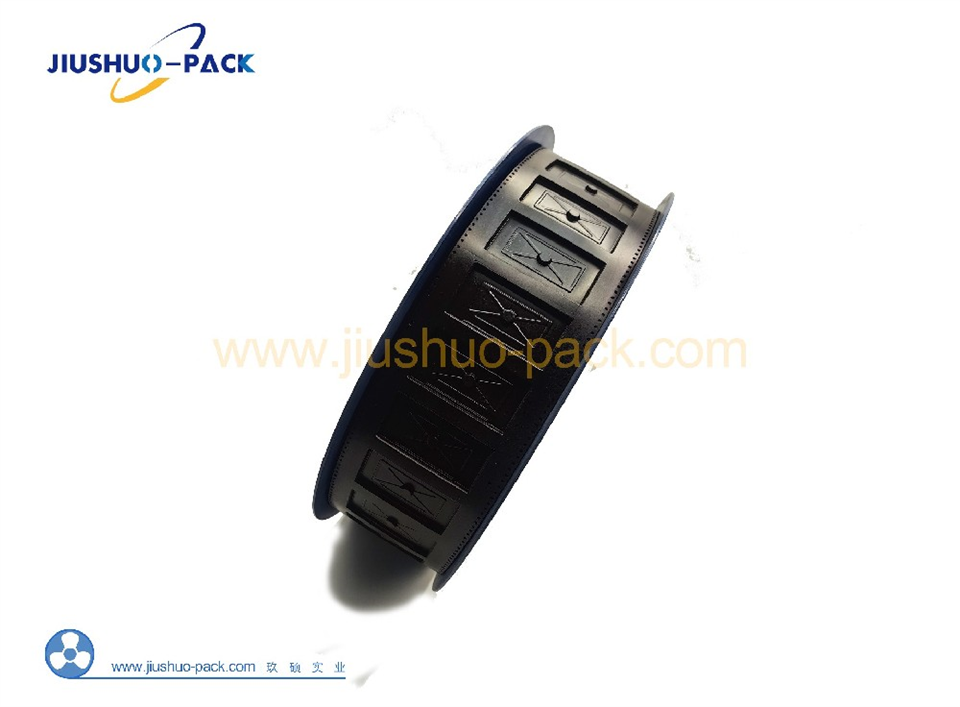

• ESD carrier tape contains precisely formed pockets designed according to the size and shape of electronic components.
• These pockets help maintain component orientation and prevent movement during transportation and automated feeding.
• Standardized sprocket holes along the tape edges allow accurate indexing when the tape moves through SMT pick-and-place machines.
• This structure ensures reliable feeding performance during automated SMT production.

ESD carrier tape is widely used in packaging electronic components that require electrostatic protection.

Typical applications include:

• integrated circuits (ICs)
• semiconductor devices
• sensors
• connectors
• other SMT electronic components

Using tape and reel packaging ensures that these components can be efficiently handled and automatically fed into SMT pick-and-place machines during PCB assembly.

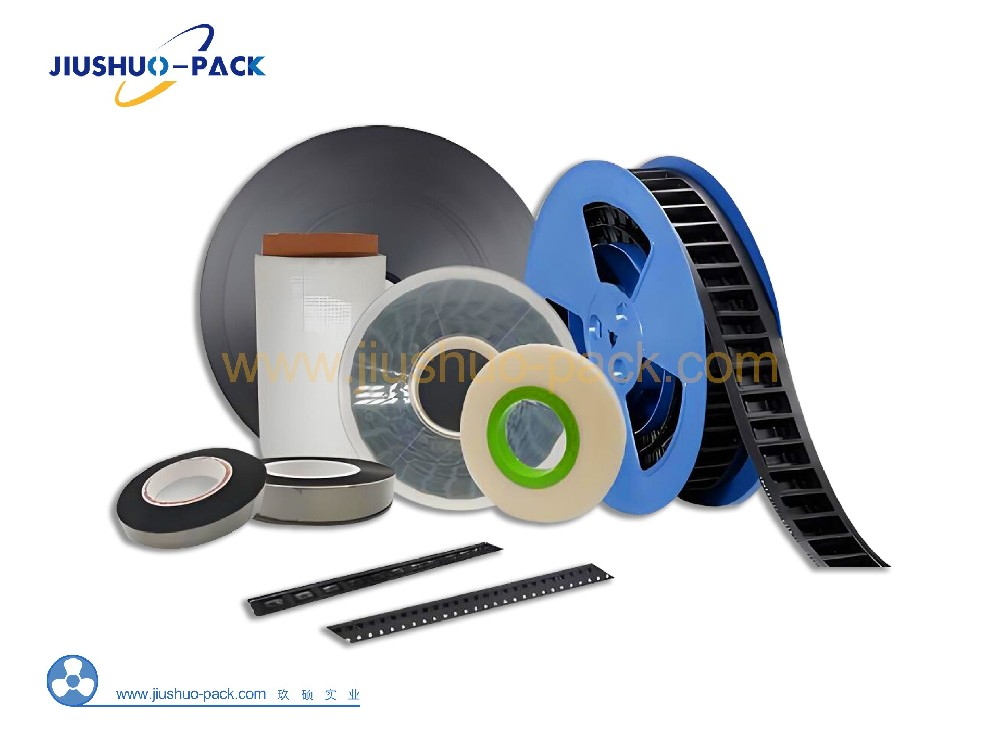

• ESD carrier tape is commonly used in tape and reel packaging systems.

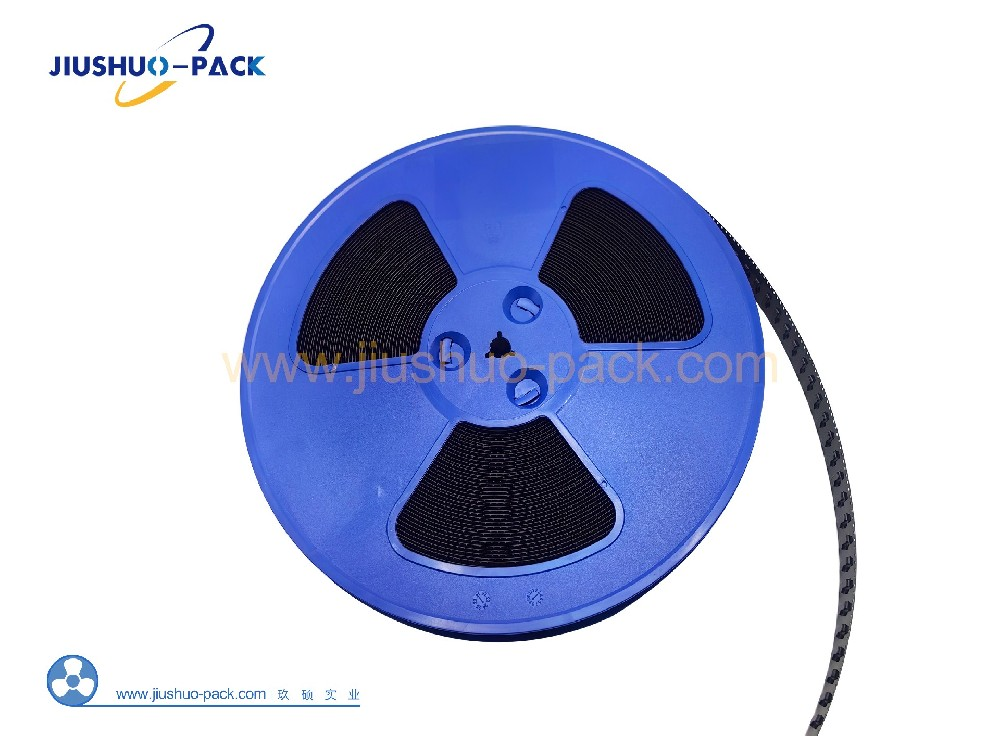

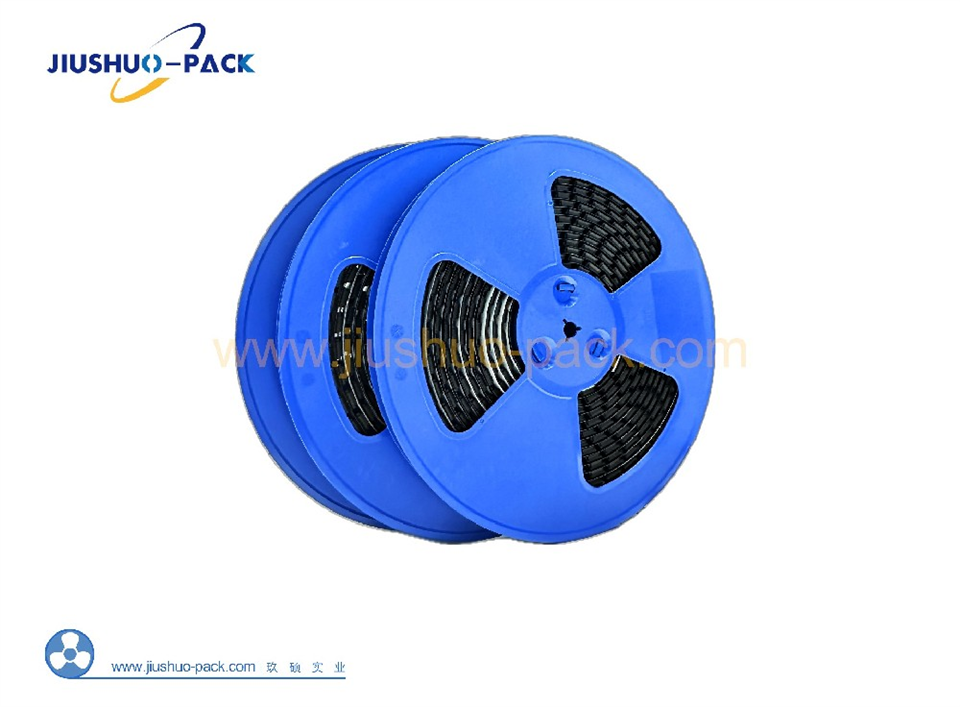

• In this process, electronic components are placed into the pockets of the carrier tape and sealed with cover tape. The sealed tape is then wound onto plastic reels for storage and transportation.
• This packaging format helps maintain component positioning and supports automated SMT production lines.

Carrier tape production requires stable forming processes and strict dimensional control to ensure reliable packaging performance.

Quality control procedures typically include:

• raw material inspection
• pocket dimension verification
• forming process monitoring
• ESD resistance testing
• finished product inspection

Most carrier tape products comply with RoHS environmental requirements and follow EIA-481 standards, ensuring compatibility with automated SMT packaging systems.
