Carrier Tape For IC

• IC carrier tape is typically manufactured from thermoplastic materials such as PS (Polystyrene), PC (Polycarbonate), PET, or ABS.
• These materials provide reliable forming characteristics, stable pocket structures, and good dimensional stability required for packaging integrated circuits.
• Material selection may vary depending on IC package type, pocket geometry requirements, and SMT production conditions.

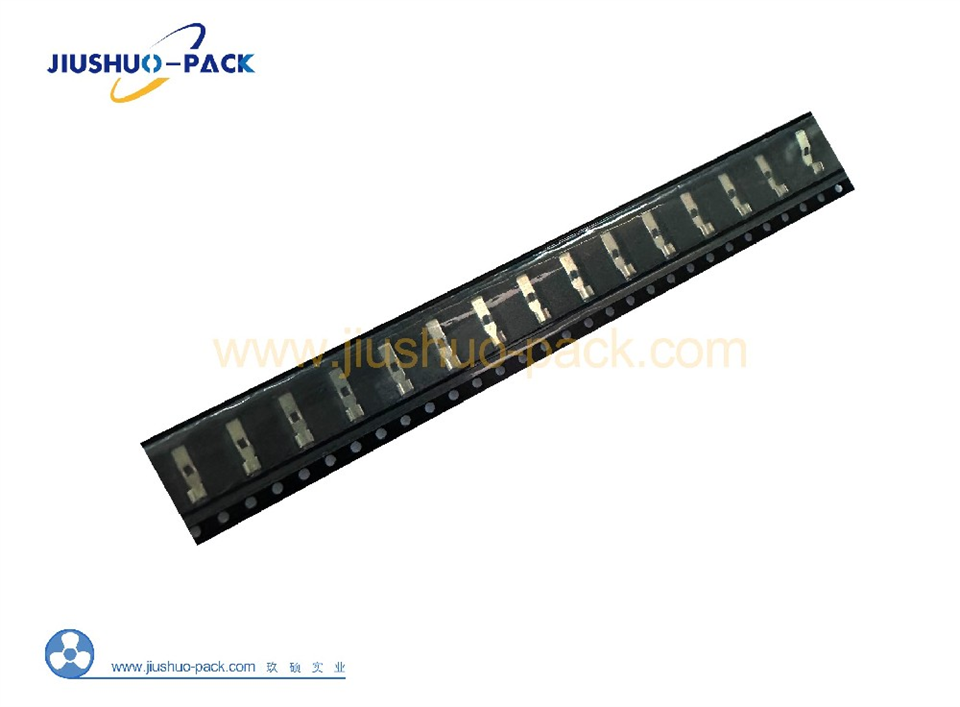

• Carrier tape for IC contains precisely formed pockets designed according to the dimensions and package types of integrated circuits.
• These pockets help maintain the orientation and positioning of IC components during transportation and automated feeding.
• Standardized sprocket holes along the edges of the tape allow accurate indexing when the tape moves through SMT pick-and-place machines.
• This structure ensures stable feeding performance during automated SMT assembly.

Carrier tape for IC is widely used to package integrated circuits for automated SMT assembly.

Typical IC package types include:

• SOP / SOIC
• QFP
• QFN
• BGA
• other surface-mount IC packages

Using tape and reel packaging allows IC components to be efficiently handled and automatically fed into SMT pick-and-place machines during PCB assembly.

In tape and reel packaging, IC components are placed into the pockets of the carrier tape and sealed with cover tape.

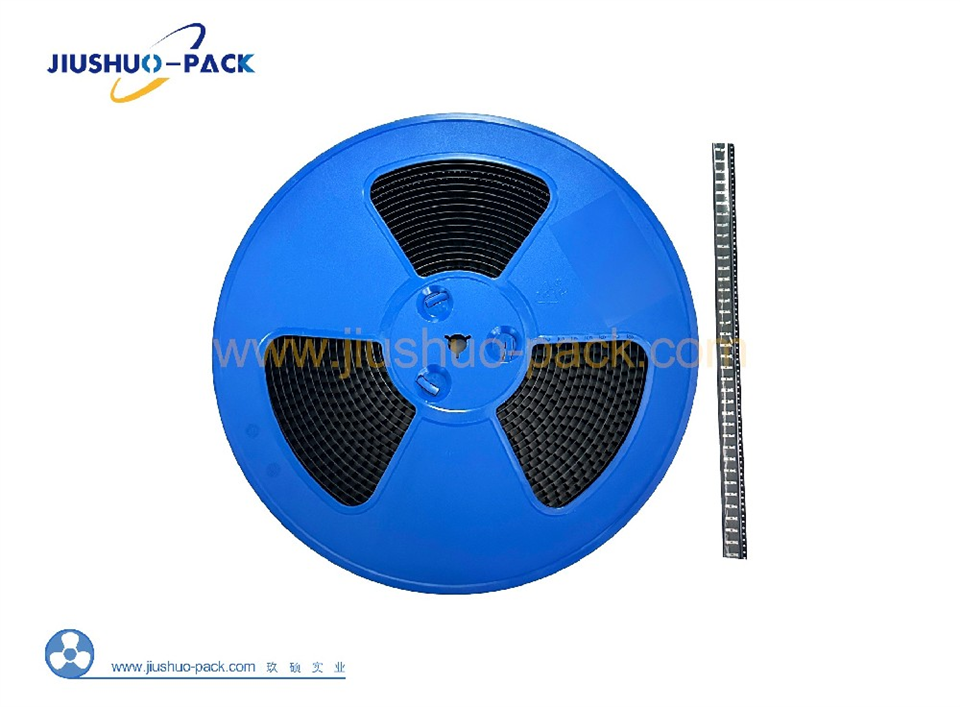

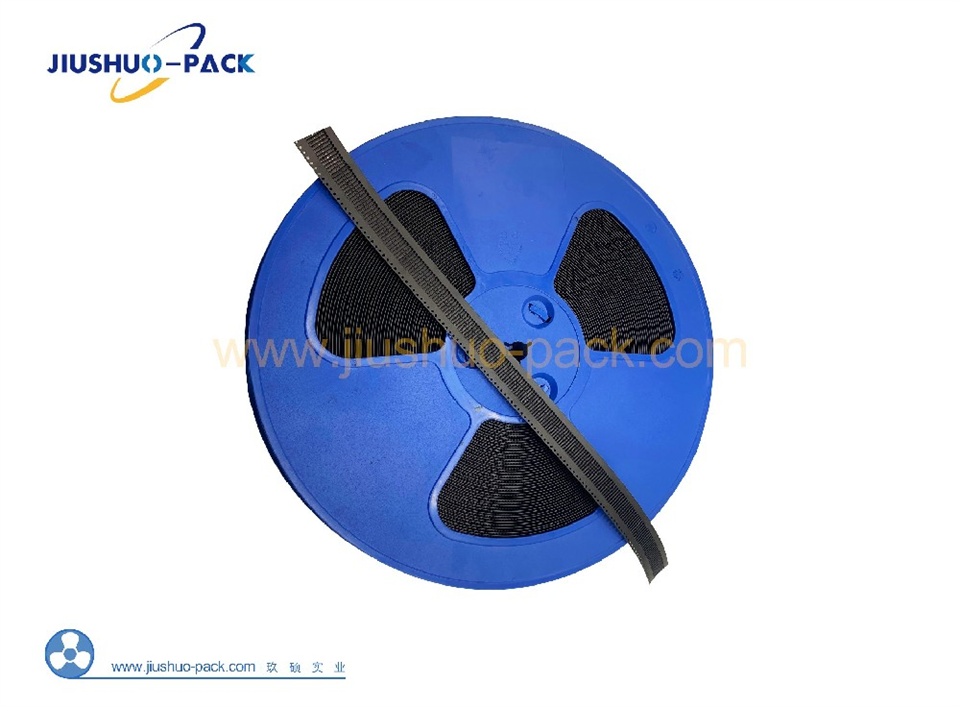

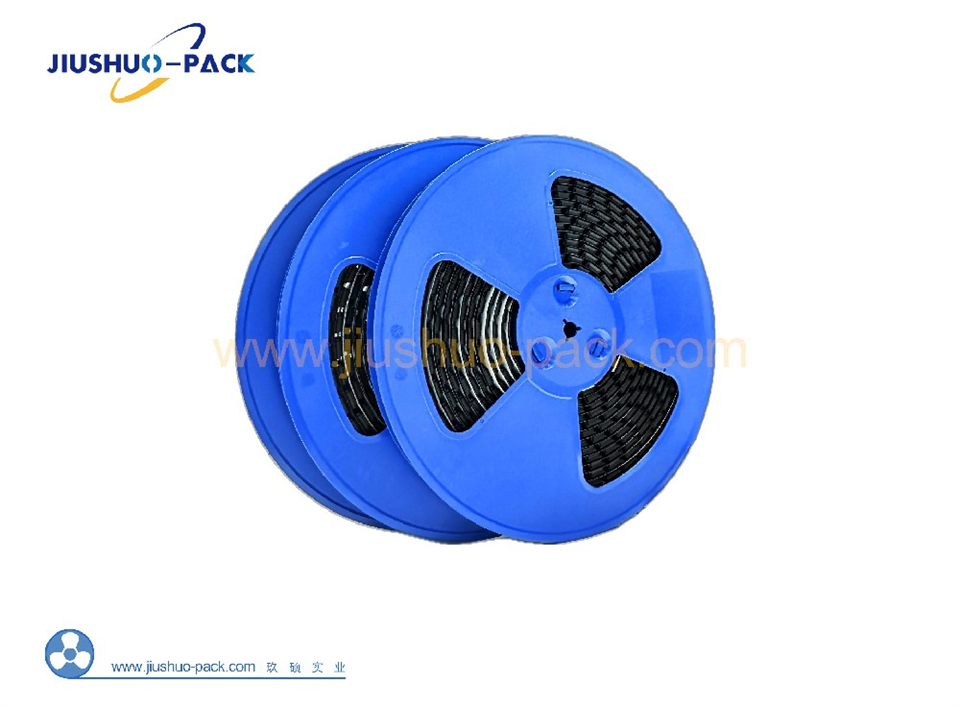

The sealed tape is then wound onto plastic reels, creating a continuous packaging format suitable for automated SMT feeding systems.

This packaging structure helps:

• protect IC components during transportation
• maintain component orientation
• support efficient automated assembly

Tape and reel packaging is widely used because it supports high-volume electronics manufacturing.

Carrier tape production requires stable forming processes and strict dimensional control to ensure accurate pocket formation and reliable tape performance.

Quality control procedures typically include:

• raw material inspection
• pocket dimension verification
• forming process monitoring
• finished product inspection

Most carrier tape products comply with RoHS environmental requirements and follow the EIA-481 standard, ensuring compatibility with automated SMT packaging systems.

Technical support is available to assist customers in selecting suitable carrier tape specifications based on IC package size and packaging requirements.

Support services may include:

• evaluation of IC package dimensions
• recommendations for suitable tape materials
• assistance with customized pocket design

This helps ensure reliable packaging performance in SMT production environments.
