Main Uses And Scope Of Application

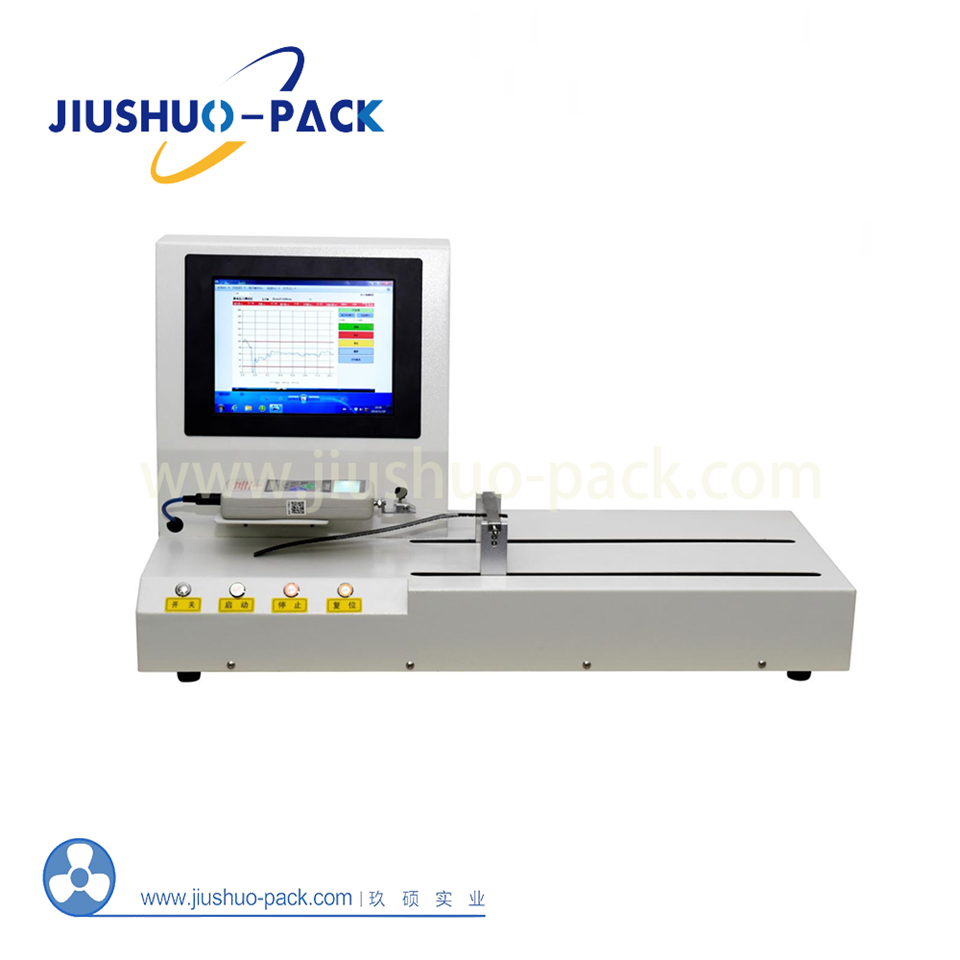

This Carrier Tape Peel Strength Tester is mainly used to test the peeling force between carrier tape and cover tape. As specified in the EIA-481 standard, the bonding force must be kept within a proper range.
If the tension is too low or too high, it will negatively affect the SMT production process. By testing with this instrument, the peeling force can be accurately controlled to fully meet SMT processing requirements.
It is widely used for SMD electronic components including inductors, transformers, connectors, crystal oscillators, semiconductors, metal stamping parts, LEDs, various jacks, ICs, USB components, power inductors, reeds, switches, keys, batteries and more.
During SMT placement, the cover tape must be peeled at a speed and force synchronized with the mounting process to ensure accurate placement. For this reason, SMT manufacturers have strict technical requirements for cover tape peeling performance.
For electronic component producers, completing carrier tape packaging is only the first step. The key is whether the packaging meets the standards of SMT assembly plants.
This peel strength tester is specially designed to control the peeling quality of carrier tape packaging, and its test report is a required inspection document for shipment.
Peel Strength Tester Features
- This peel strength tester is designed in full compliance with the requirements of the EIA-481 standard.
- It is equipped with an industrial tablet control interface, featuring intuitive and user-friendly software operation. Test results are locked and cannot be altered, ensuring high data credibility.
- The unit adopts a high-precision screw module with an effective stroke of over 400mm. It runs smoothly without jitter and produces low noise, reflecting excellent build quality.
- The tester supports delayed sample data reading and real-time display of test results. Users can set upper and lower tension limits, enabling automatic result judgment and printing.

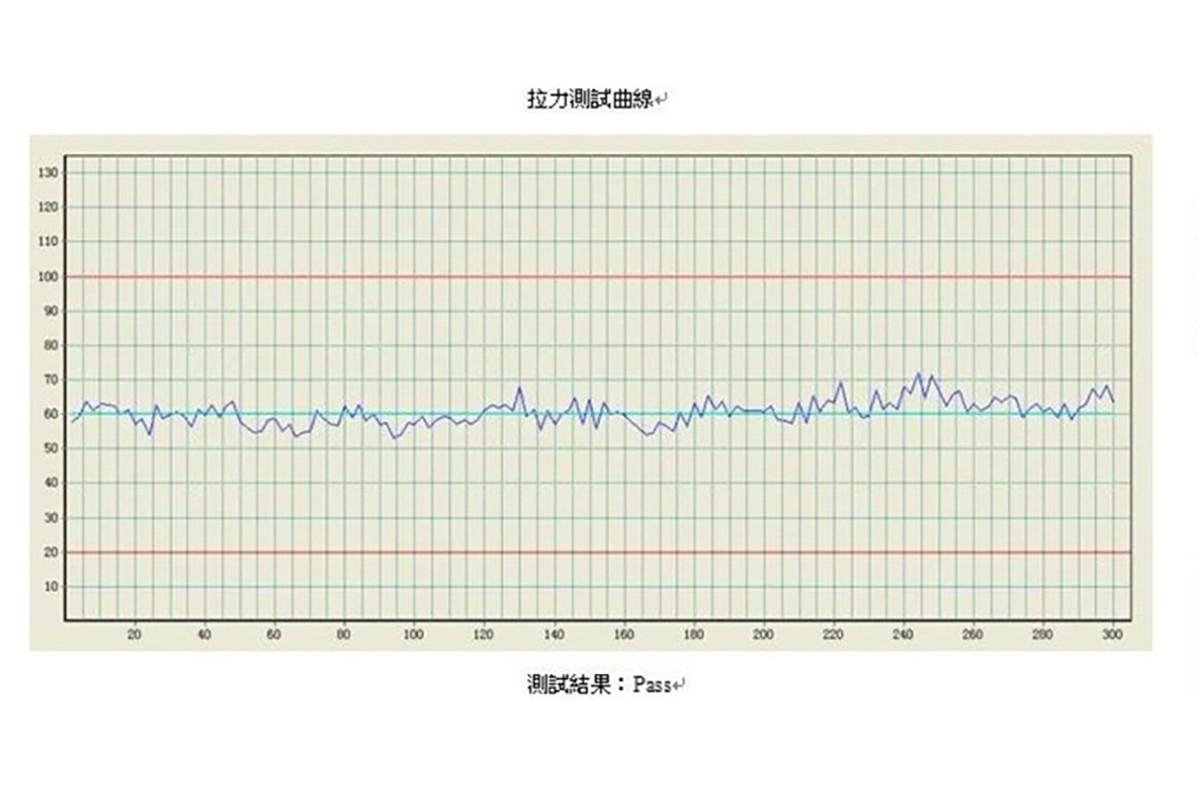

- The system establishes a direct connection between the computer and the tension meter, capturing tension data continuously and displaying it as a real-time curve on the screen. Key metrics including maximum value, minimum value, tension range, average value, RMS value, standard deviation and variance are automatically calculated for convenient data analysis.
- The software supports three language options: Simplified Chinese, Traditional Chinese and English. It can store test data and build a historical database, and export test reports in PDF format for easy sharing and archiving.
