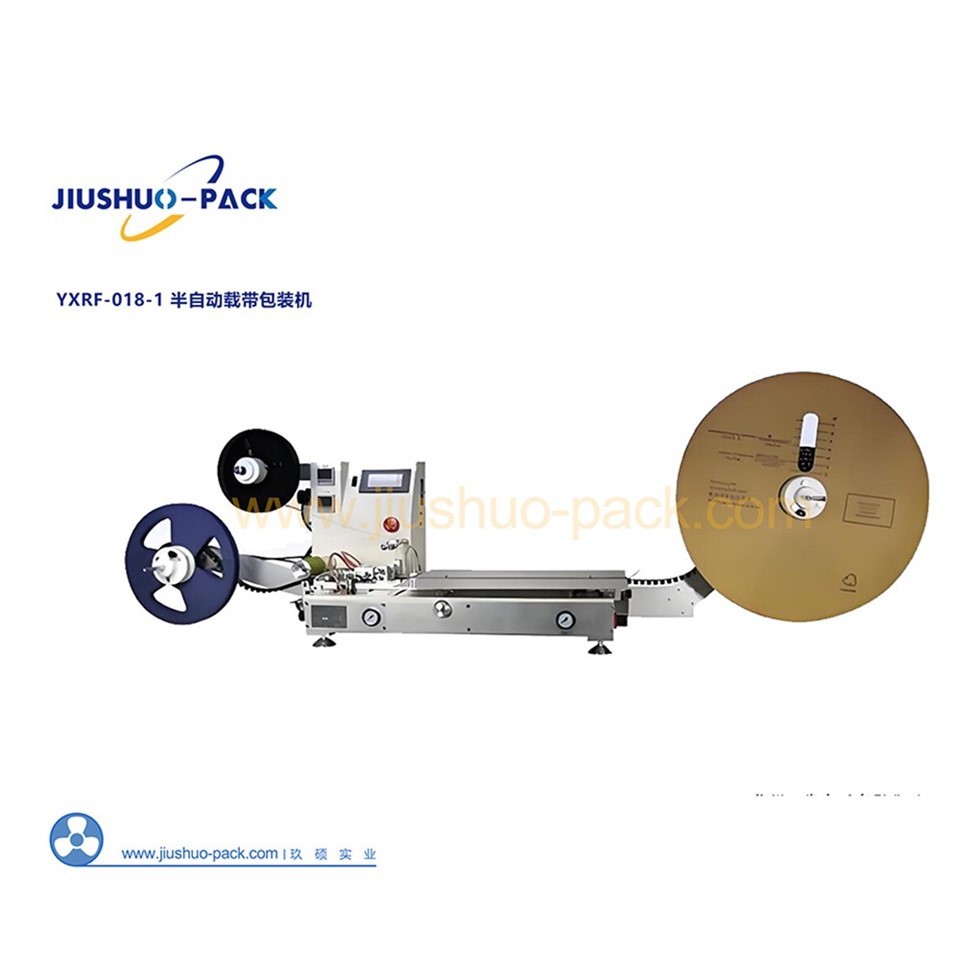

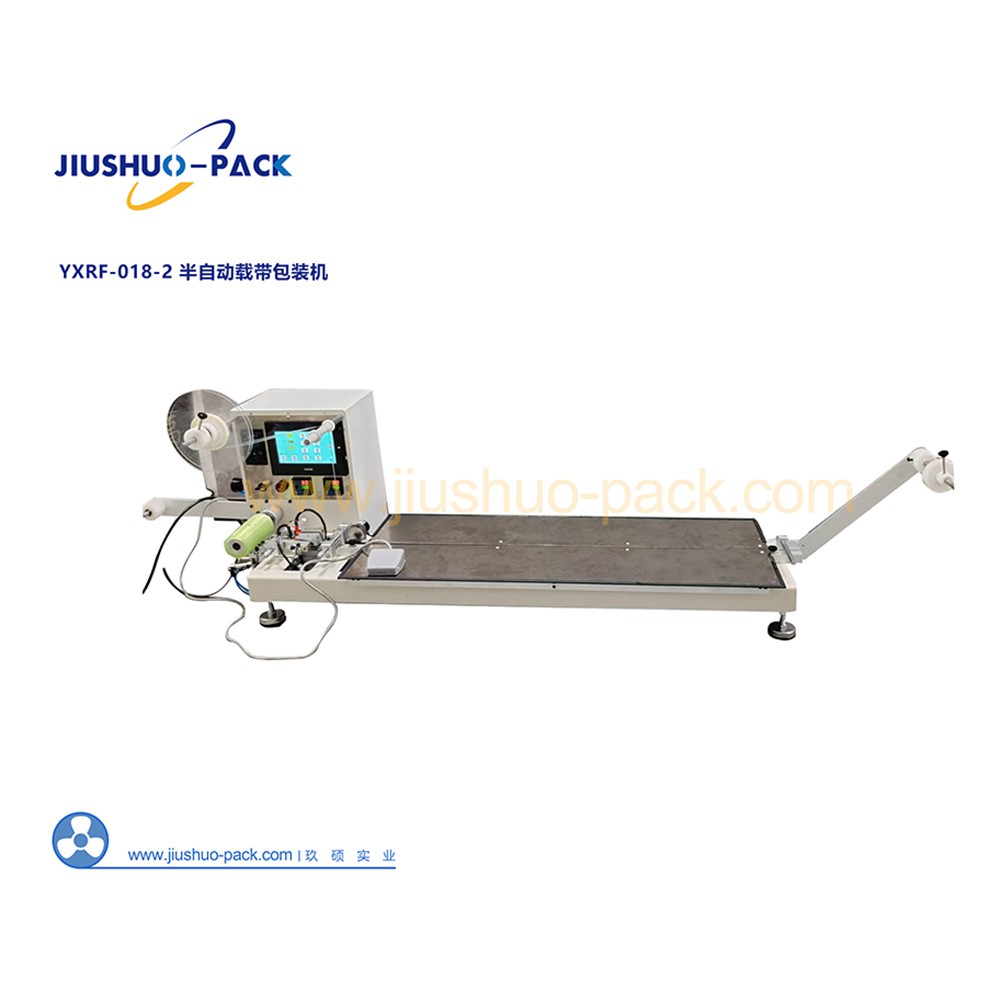

The Semi-Automatic Carrier Tape Packaging Machine features a user-friendly HMI for simple packaging operation and can be run independently by a single operator.
- Packaging speed: 5,000–8,000 pcs/hr, adjustable according to manual component loading speed for different parts.
- Packaging width adjustment: The rail width can be flexibly adjusted to match carrier tape width. Standard packaging range: 8–88 mm.
- Equipped with a foot pedal for sealing control during operation. The machine runs stably and smoothly, with no risk of component damage or carrier tape jamming.
- Supports both cold-sealing self-adhesive tape and heat sealing, suitable for packaging all SMD components and carrier tapes.
- Electrical requirements: AC220V, 50Hz, power 300W; operating air pressure: 3.0 kg/cm².
- Dimensions: L1300mm × W600mm × H500mm
- Weight: 55kg
Product Features
Easy Operation & High Adaptability:
Equipped with a user-friendly HMI, parameters can be set intuitively, and the whole machine can be operated independently by a single person, reducing training costs. The rail width is flexibly adjustable, compatible with 8–88 mm carrier tapes, meeting the packaging needs of different specifications of SMD components.
01
Dual Sealing Modes:
Supports both cold sealing (for self-adhesive tape) and heat sealing, suitable for various packaging materials, strong versatility, and can be switched according to actual production needs.
02
Stable & Reliable Performance:
The machine runs at a stable and uniform speed, with no component breakage or carrier tape slot jamming during the packaging process, ensuring the integrity of SMD components and the quality of packaging.
03
Flexible Speed Control:
The packaging speed ranges from 5,000 to 8,000 pcs/h, which can be flexibly adjusted according to the manual feeding speed of different components, balancing efficiency and operation stability.
04
Humanized Design:
Foot pedal control is adopted for sealing operation, freeing the operator's hands to focus on feeding, improving operation efficiency;
05
