Equipment Description

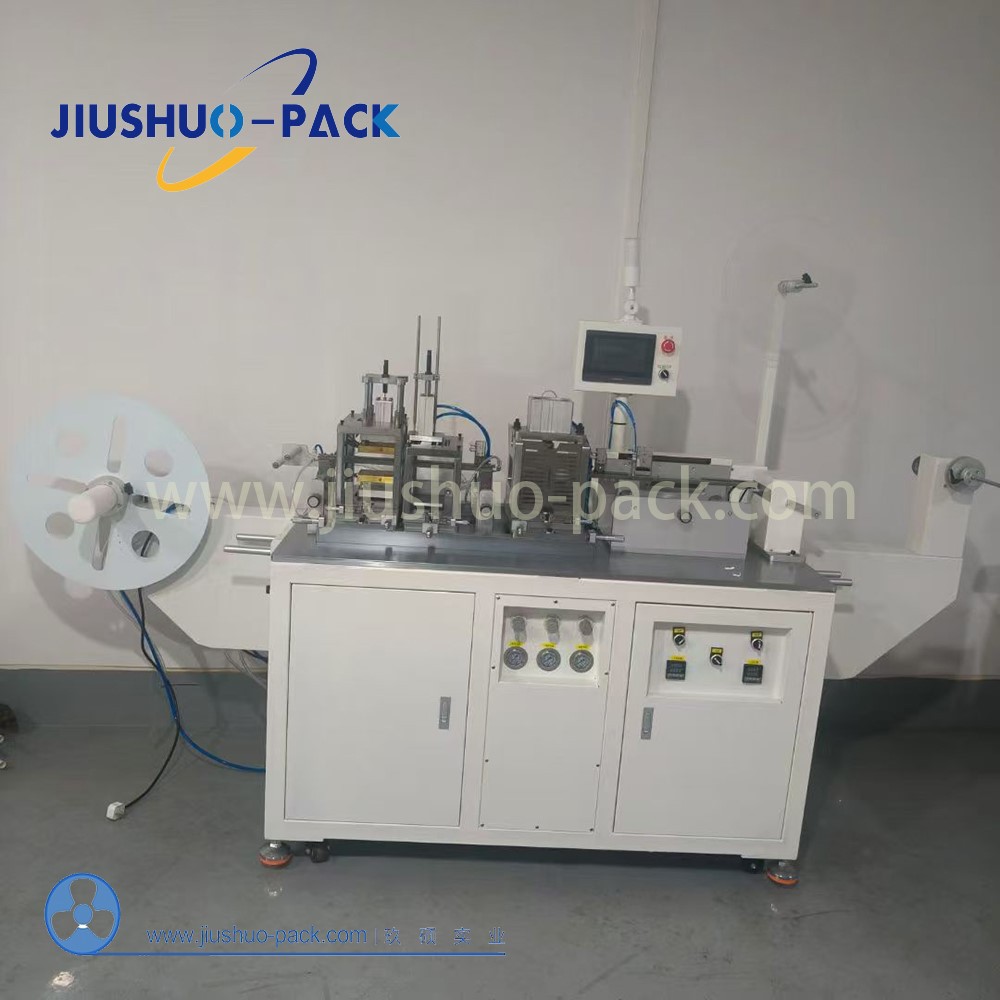

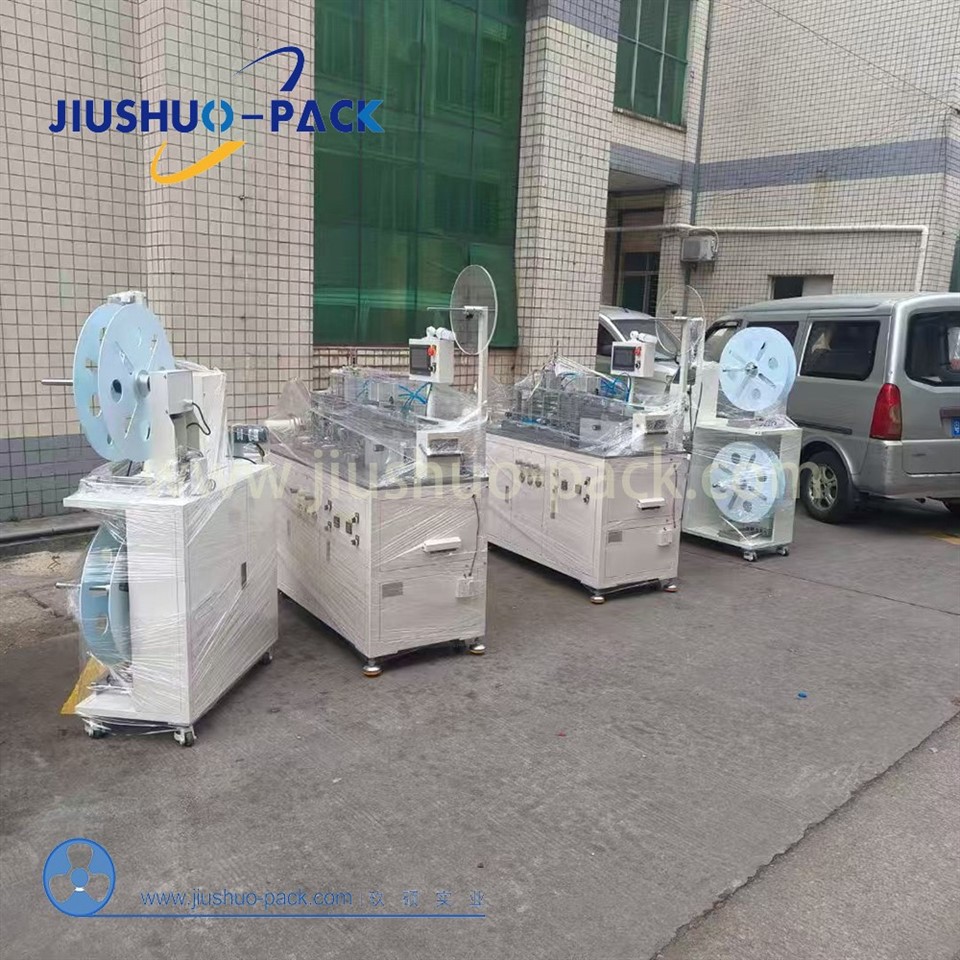

The main body of the Carrier Tape Production Machine forming machine can produce carrier tapes with a width of 12 to 88 millimeters, with a stable production speed of 200 to 300 meters per hour (the production capacity varies depending on the thickness of the raw materials and the size of the product cavity). It is suitable for raw materials such as PS, PET, and PC. The tape winding device can wind super-large reels with a diameter of over 1 meter.
Performance Features
This carrier tape production machine offers outstanding adjustability. Mold installation, removal and adjustment are all straightforward and user-friendly. Technicians can complete one-step adjustment of heating, forming and punching molds directly from the front of the machine, reducing setup time to within one hour and greatly improving mold change efficiency. It is equipped with a direct-drive servo motor belt-pulling system to ensure high-precision feeding and stable operation.
The machine features a compact structure and reasonable layout with a small footprint. The system is controlled via an intuitive touch screen, with an independent control panel designed for ergonomic operation, making it convenient for operators to use.
Functions
|
Forming carrier tape range |
12mm–88mm in width (customizable) |
|
Forming processes |
heating, forming, punching, drawing, cutting |
|
Belt pulling mode |
servo-driven |
|
Punching mode |
pneumatic cylinder |
|
Operation mode |
touch screen control |
|
Counting mode |
module counting |
|
Adjustment mode |
micrometer adjustment |
Main Configuration
|
Control unit |
Mitsubishi PLC (Japan) |
|
Display unit |
industrial touch screen (domestic) |
|
Belt pulling unit |
Panasonic servo motor (Japan) |
|
Temperature control unit |
high-precision PID temperature controller (RKG) |
|
Pneumatic unit |
long-service-life cylinder (AirTAC, Taiwan) |
Configurations can be customized per customer requirements. Standard specifications may be upgraded with performance improvements; final configuration is subject to the delivered machine.
Technical Parameters
|
Power supply |
AC220V, 50Hz |
|
Power consumption |
3kW |
|
Air pressure |
5–7kg |
|
Temperature control range |
room temperature to 300℃ |
|

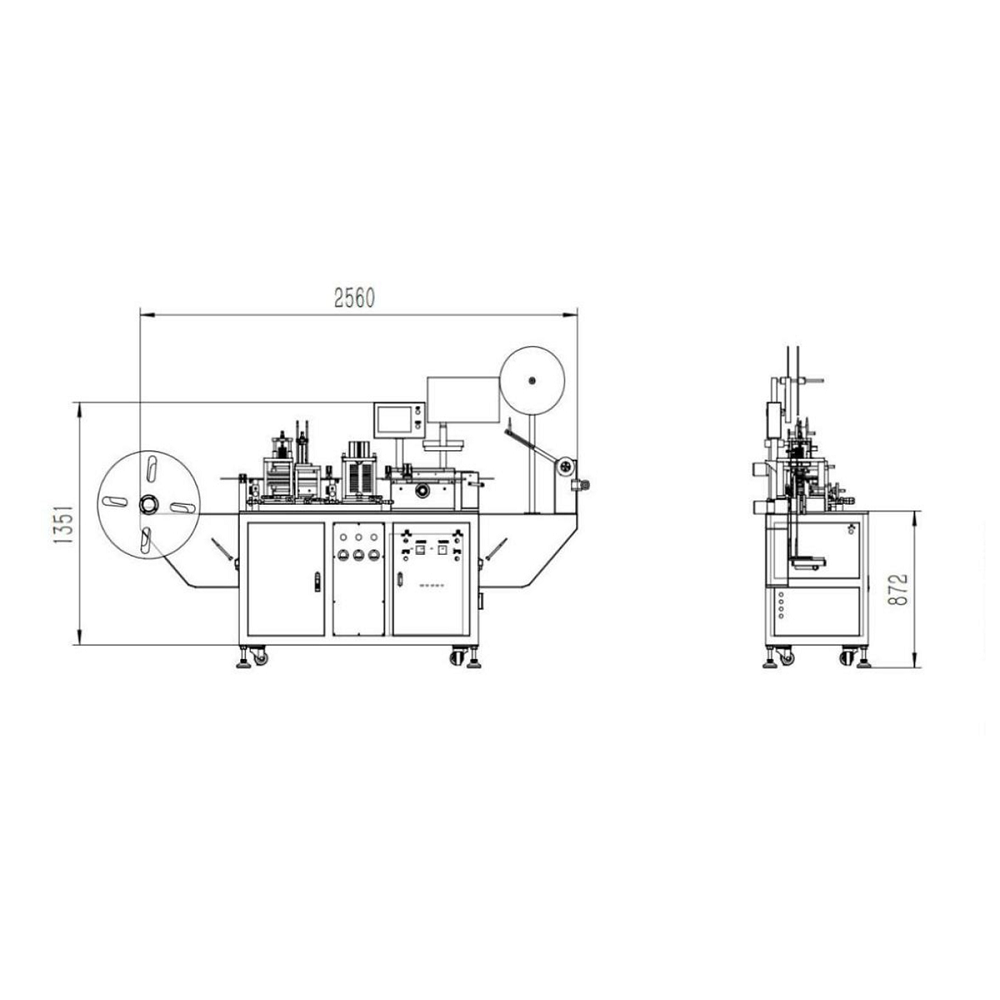

Dimensions |
L2600mm × W600mm × H1500mm |
|
Weight |
500kg |
|
Take-up reel diameter |
13" / 22" |
|
Unwinding reel diameter |
22" |
Parameters can be adjusted according to customer requirements. Standard specifications may be upgraded with performance improvements; final parameters are subject to the delivered machine.
Engineering Overview
- In-stock availability
- Excellent and stable forming structure, optimized and verified through years of practical application, ensuring easy operation and high stability
- High-performance servo motor for precise and reliable operation
- All-steel frame with high-precision machining for enhanced durability
- Simple and mature operating procedures and human-machine interface
- All machined components produced in-house using milling machines, grinders and wire-cut EDM, ensuring consistent quality and cost efficiency
