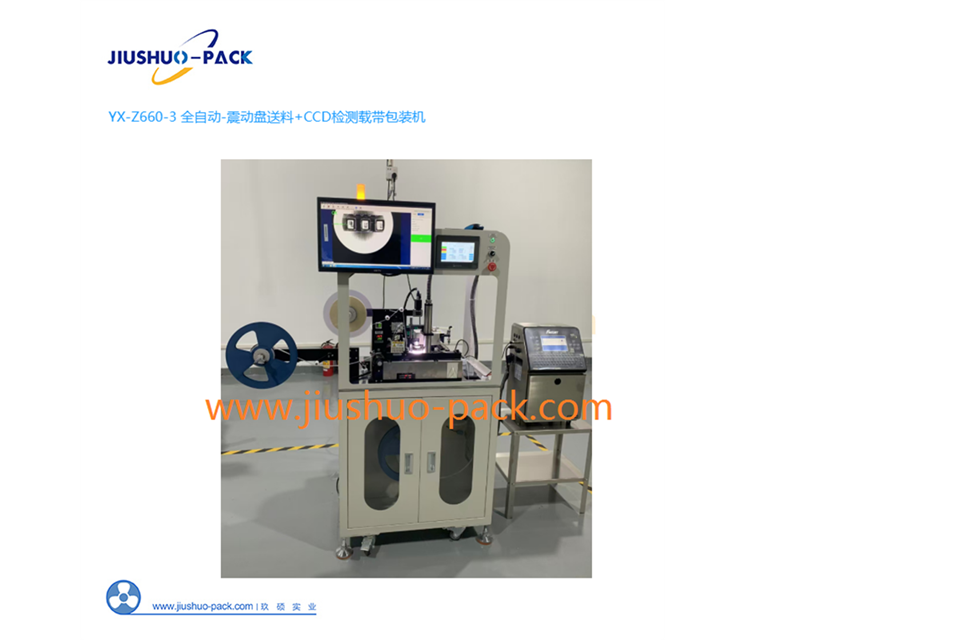

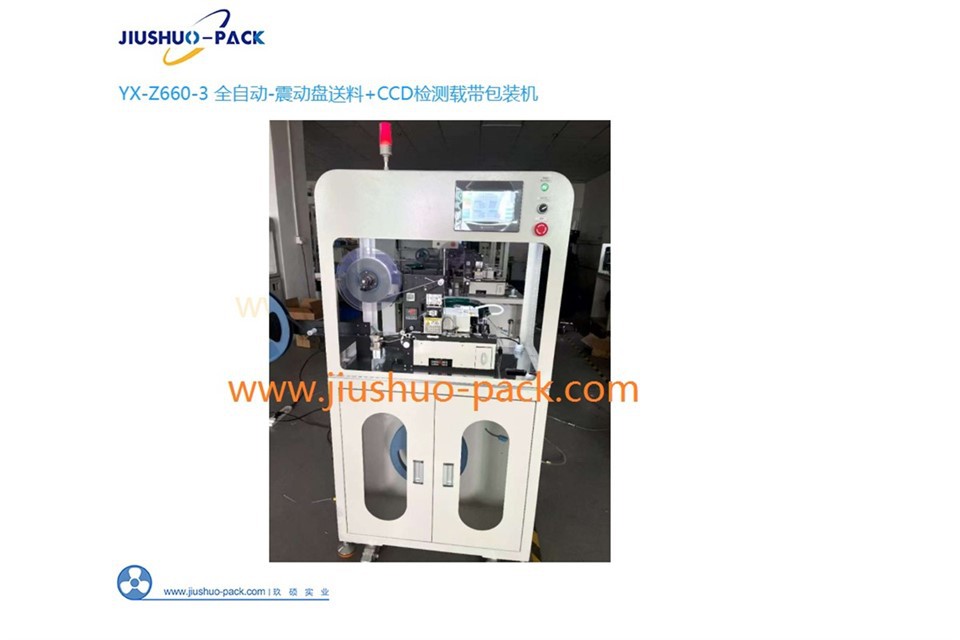

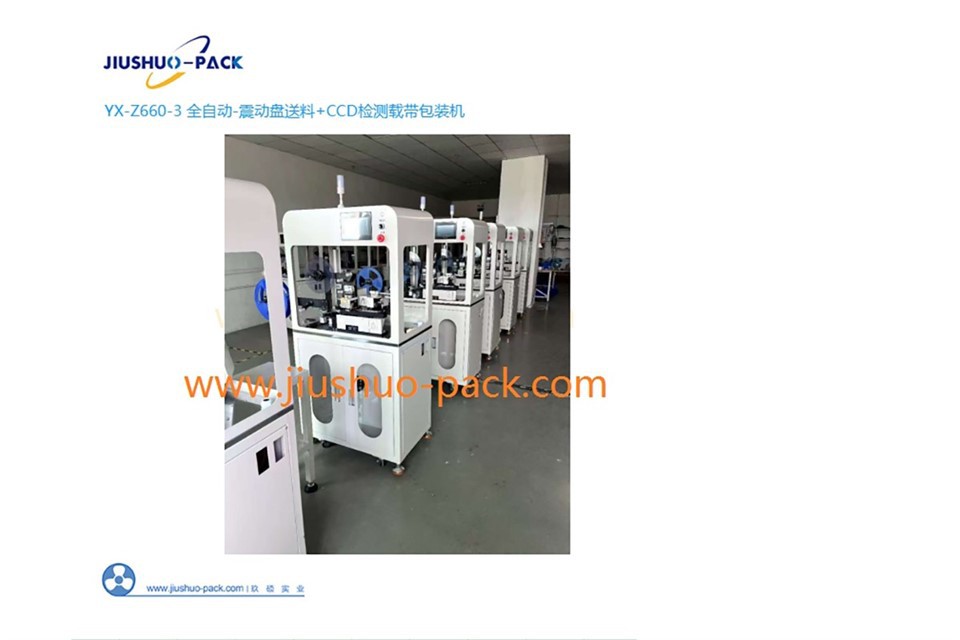

Fully Automatic Carrier Tape Packaging Machine

1. Using a vibrating disc for feeding, it can physically identify the front, back, and direction of the product,achieving automatic feeding function

2. Using a single swing arm robotic arm to pick up and place products, it can quickly pick up and place products,

3. Strong compatibility, according to different products, switching to corresponding specifications can complete production work.

4. Fully functional, with parameter settings, capable of setting the number of front and rear empty spaces, packaging quantity, carrier tape, cover tape,length, and remaining alarm numbers

5. The equipment is equipped with a CCD vision inspection function, which can detect the direction, minority,and missing installation of the product, and also recognize and scan the QR code on the product surface

• Appearance: Approximately 1500mm in length/700mm in width/1450mm in height, weighing 200kg
• Power system: single-phase AC220V, 50Hz: 5.0kg/c ㎡ ≤ air pressure ≤ 9.0kg/cm
• Rated power: 4.6KW
• Supply system: Suitable for EIA-481A standard carrier tape and matching upper cover tape
• Carrier tape specification: 12 width ≤56m depth ≤ 40mm

• Temperature control system: Single head adjustable PID temperature controller, temperature control should be between 120 ℃ -200 ℃
• Ribbon speed: 5000-10000pcs/h, limited by component specifications
• Counting function: internal pulse counting in the system
• Suture form: self-adhesive/hot pressing
• Collecting and discharging trays: 13 inch, 15 inch, 22 inch, 27 inch rubber or paper trays
