This micro‑adhesive carrier tape packaging machine is designed for efficient and stable packaging of flat electronic components. It adopts an external touchscreen HMI for intuitive operation and quick learning, allowing operators to get started easily and adjust the machine with high convenience. The moving parts are controlled by screw adjustment for precise and flexible positioning.
The machine uses micro‑adhesive film feeding and supports automatic packaging at a speed of 5,000 to 9,000 pcs per hour, depending on product specifications. Its main structure includes a single‑track loading feeder, 4‑station servo‑driven pick‑and‑place module, front and bottom CCD inspection modules, carrier tape and cover tape feeding systems, as well as a stable taping main body and user-friendly operating system.
Parameter Of Apparatus
|
No. |
Item |
Specification |
|
1 |
Voltage |
AC220V |
|
2 |
Working Air Pressure |
5-7 kg/cm² |
|
3 |
Power |
1.5 kW |
|
4 |
Dimensions (L×W×H) |
1200×750×1700 mm |
|
5 |
Weight |
300 kg |
List and model specifications of large and standard parts for equipment
|
No. |
Item |
Specs |
Qty |
Type |
Location |
|
1 |
Feeder (1-lane) |
S2-L-V1.0 |
1 |
Standard |
Feeding Module |
|
2 |
Fiber Amplifier (Panasonic) |
FX-501-C2 |
1 |
Standard |
Feeding Module |
|
3 |
Servo Motor (Panasonic) |
MSMF042L2A1+M ADLN15SE |
2 |
Standard |
Picking Module |
|
4 |
CCD1 Camera (Hikvision) |
130W (80fps) |
1 |
Standard |
Picking Module |
|
5 |
CCD1 Lens (Domestic) |
600W |
1 |
Standard |
Picking Module |
|
6 |
CCD2 Camera (Hikvision) |
130W (80fps) |
1 |
Standard |
Taping Module |
|
7 |
CCD2 Lens (Domestic) |
600W |
1 |
Standard |
Taping Module |
|
8 |
Stepper Motor (Domestic) |
57HSE23+2HSE57-S |
1 |
Standard |
Taping Module |
|
9 |
Cylinder (Airtac) |
SDA-20*40B |
1 |
Standard |
Taping Module |
|
10 |
Cylinder (Airtac) |
CQ2B16-5D |
1 |
Standard |
Taping Module |
|
11 |
HMI (Touch Panel, Xinje) |
TG765S-XT |
1 |
Standard |
Electrical Control System |
|
12 |
PLC (Xinje) |
XD5-60T4-E |
1 |
Standard |
Electrical Control System |
|
13 |
PC (Custom Configuration) |
- |
1 |
Standard |

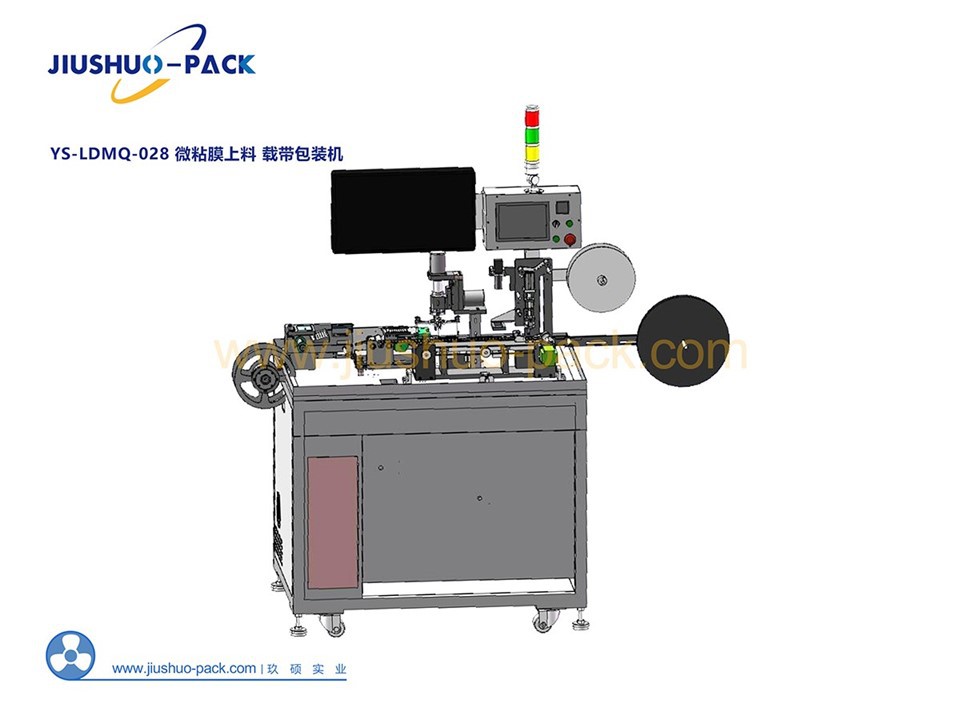

Micro-Adhesive Carrier Tape Packaging Machine
Equipment Features
- Equipped with a human-machine interface for easier and faster operation learning.
- External touchscreen design enables more convenient equipment debugging.
- Moving parts adopt screw adjustment for simpler and more precise control.
Technical Parameters
- Applicable products: flat products
- Feeding method: micro-adhesive film feeding
- Efficiency: packaging speed 5,000–9,000 pcs/h (depending on product specifications)
Main Structure of Equipment

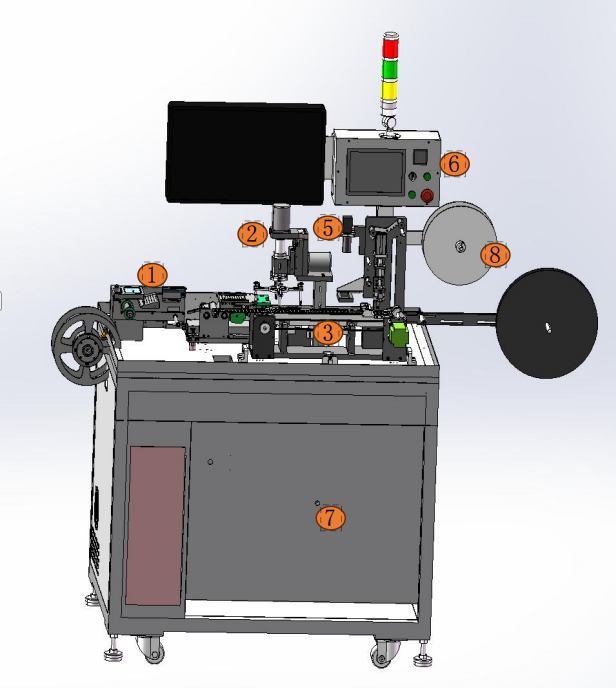

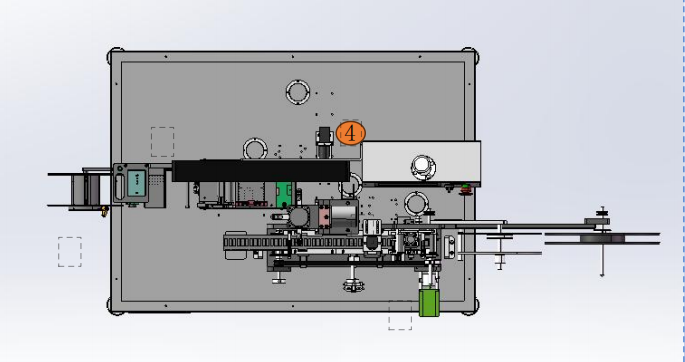

Main Structure of Micro-Adhesive Carrier Tape Packaging Machine：
- Loading Feeder (Single Track)
- Material Picking Module (4-station), servo-driven
- Taping Main Body
- Bottom CCD Inspection Module
- Front CCD Inspection Module
- Operating System
- Carrier Tape Feeding System
- Cover Tape Feeding Assembly
Material Feeding Structure

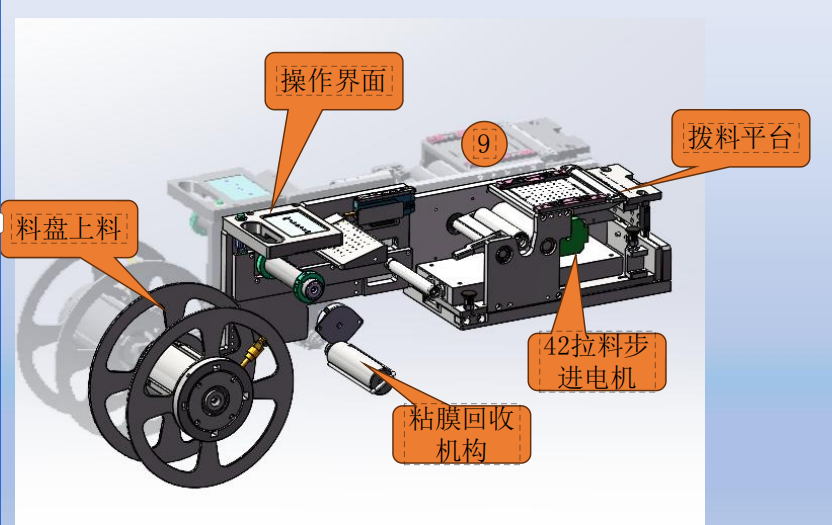

9. Single‑track loading feeder adopted: Model S2‑L‑V1.0
Material Picking Module & Bottom Camera Module

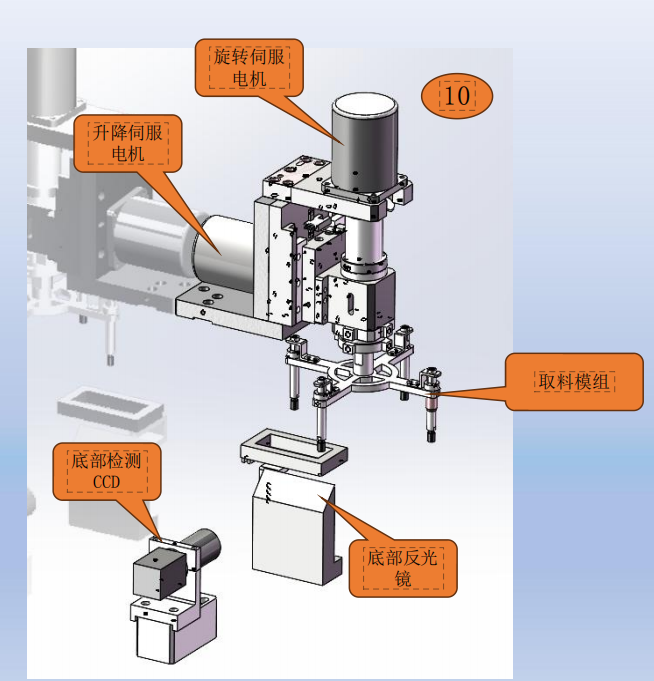

10. Custom non‑standard structure
Taping Main Body & Front CCD Inspection Module

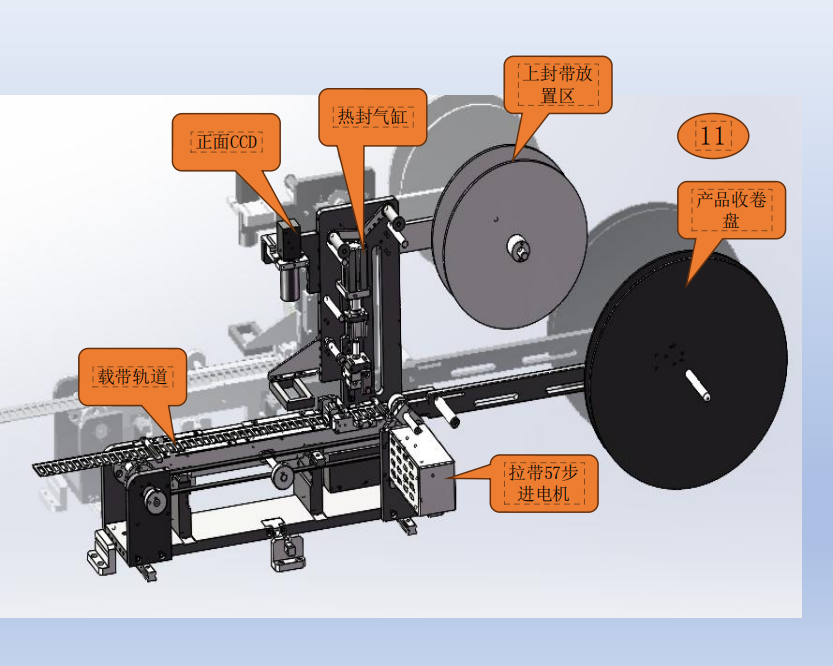

11.Custom non‑standard structure
